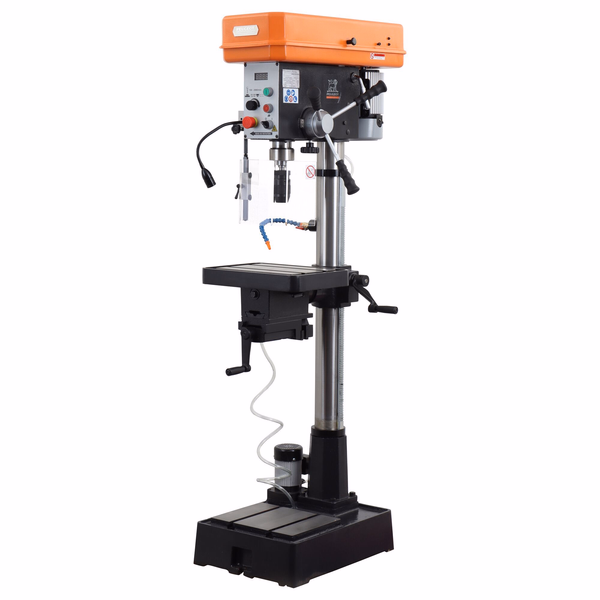

Drill press capacity 30 mm - 400 V three-phase - table - 125 mm spindle stroke - reversible vice - PPSC30VETE
REFERENCE : PPM00400004
EAN : 3221912396921
4 715 € VAT exc.*Recommended indicative user price
To request a quote, please log in
Drilling under lubrication, intensive use 6 to 7 hours/day.
Motor power kW1.1
V power supply400
Weight140
Length575
Height95
Width425
Min. spindle speed180
Max. spindle speed2510
Max. drilling capacity30
Morse taperCM3
Column diameter92
Spindle stroke120
No. of speeds12
d: column spindle distance (mm)250
e: base spindle distance (mm)1215
f: table spindle distance (mm)755
Table size470x420
LightingYes
Slave screenYes
Cross-movement tableNo
Automatic descentNo
Motor power kW1.1
V power supply400
Weight140
Length575
Height95
Width425
Min. spindle speed180
Max. spindle speed2510
Max. drilling capacity30
Morse taperCM3
Column diameter92
Spindle stroke120
No. of speeds12
d: column spindle distance (mm)250
e: base spindle distance (mm)1215
f: table spindle distance (mm)755
Table size470x420
LightingYes
Slave screenYes
Cross-movement tableNo
Automatic descentNo
