Combined 200 mm single abrasive wheel + 200 mm single brush -PTMB200

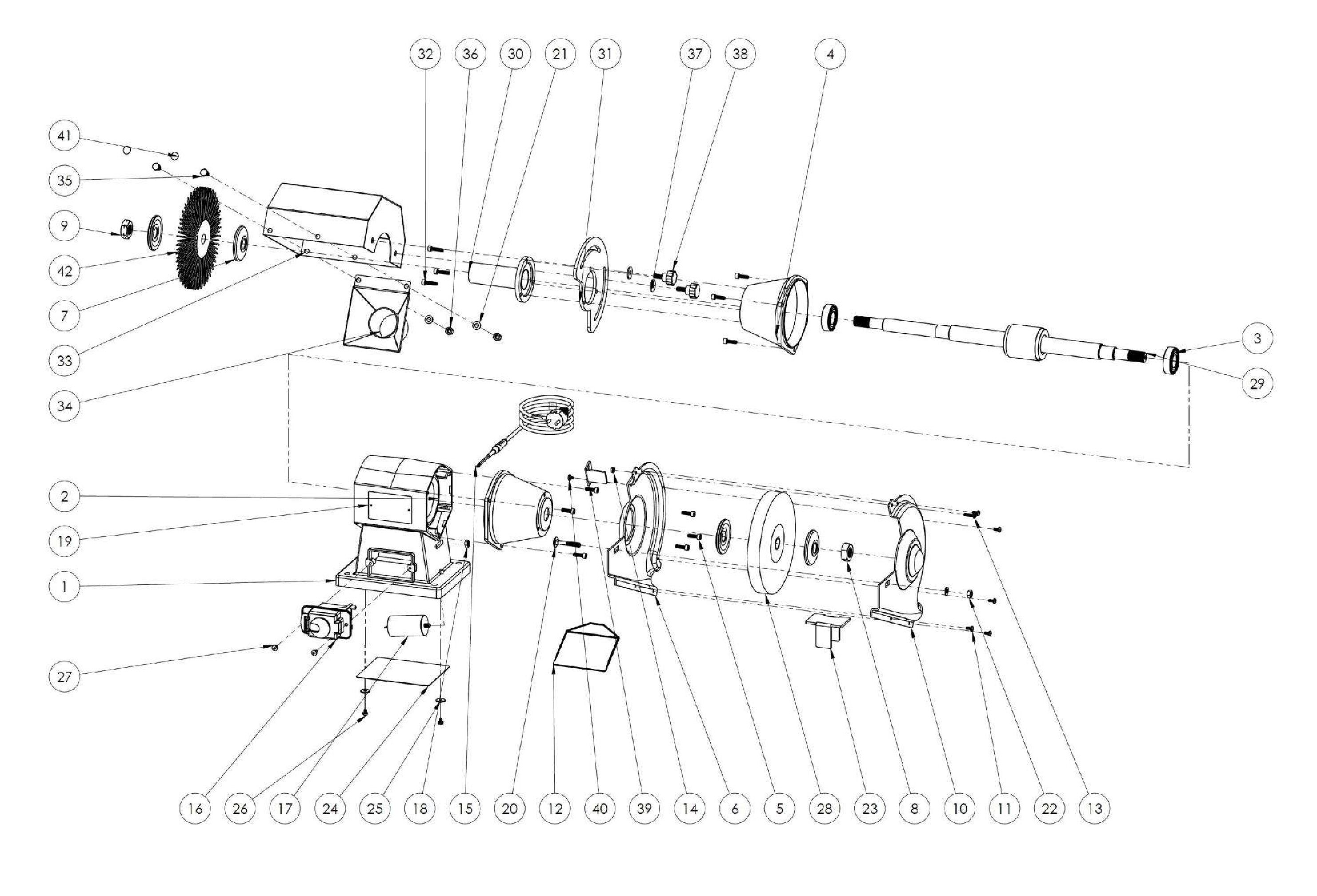

Exploded view — Ref. PPM00100003
| Item | Photo | Designation | Qty/machine | Quantity | Price | |
|---|---|---|---|---|---|---|
 | XPLR+FT mirror polishing felt type NF 925 Ref. PPR10506011 — | 1 | — | |||
| XPLR+STS3 stand for bench grinders Ref. PPR20198486 — | 1 | — | |||
| 1 | | Motor frame 0.675KW Ref. PPR20193020 — | 1 | — | ||
| 2 | | Stator 230V 50HZ 0.675KW Ref. PPR20193038 — | 1 | — | ||
| 3 |  | Bearing 6205 ZZ Ref. PPR20197365 22.46 € | 2 | 22.46 € | ||
| 4 | | Motor housing 0.675KW Ref. PPR20193033 — | 2 | — | ||
| 5 | | Screw 6x20 Ref. PPR20197377 2.08 € | 9 | 2.08 € | ||
| 6 | | Inner grinding wheel guard Ref. PPR20193029 29.11 € | 1 | 29.11 € | ||
| 7 |  | Flange for D.200MM Ref. PPR20197348 17.56 € | 4 | 17.56 € | ||
| 8 |  | Grinding wheel clamping nut M20*1.5 Ref. PPR20197177 11.22 € | 1 | 11.22 € | ||
| 9 |  | Grinding wheel clamping nut M20*1.5 Ref. PPR20197341 14.12 € | 1 | 14.12 € | ||
| 10 | | Outer grinding wheel guard Ref. PPR20193025 29.06 € | 1 | 29.06 € | ||
| 11 | | Screw 5x10 Ref. PPR20197374 2.11 € | 5 | 2.11 € | ||
| 12 |  | Protective guard Ref. PPR20197174 10.07 € | 1 | 10.07 € | ||
| 13 |  | Screw 5x20 Ref. PPR20197375 2.12 € | 1 | 2.12 € | ||
| 14 |  | Nut M5 Ref. PPR20197342 2.08 € | 1 | 2.08 € | ||
| 15 |  | Electrical power cable Ref. PPR20197157 20.60 € | 1 | 20.60 € | ||
| 16 |  | Switch 230V single-phase Ref. PPR20197349 96.19 € | 1 | 96.19 € | ||
| 17 |  | Capacitor 16µF Ref. PPR20197173 15.11 € | 1 | 15.11 € | ||
| 18 | | Nut M8 UNI 5589 Ref. PPR20197344 2.11 € | 1 | 2.11 € | ||
| 20 | | Bolt 8X50 UNI 5587 Ref. PPR20197155 2.10 € | 1 | 2.10 € | ||
| 21 | | Washer M8 UNI 6592 Ref. PPR20197358 2.10 € | 3 | 2.10 € | ||
| 22 | | Nut M8 UNI 5588 Ref. PPR20197345 2.33 € | 1 | 2.33 € | ||
| 23 |  | Tool support TE Ref. PPR20197370 9.07 € | 1 | 9.07 € | ||
| 24 | | Frame protection plate Ref. PPR20193035 — | 1 | — | ||
| 25 | | Washer M6 Ref. PPR20197357 2.08 € | 2 | 2.08 € | ||
| 26 | | Screw 4.8X9.5 UNI 6950 -7976 Ref. PPR20197373 2.09 € | 2 | 2.09 € | ||
| 27 |  | Screw 4.8X13 Ref. PPR20197371 2.09 € | 2 | 2.09 € | ||
| 28 | | XPLR+MT A60M grey corundum grinding wheel Ref. PPR10505085 — | 1 | — | ||
| 29 | | Rotor 0.675KW M-B Ref. PPR20193036 — | 1 | — | ||
| 30 | | Rotor shaft housing 0.675KW side Ref. PPR20193022 — | 1 | — | ||
| 31 | | Brush housing support D. 200MM Ref. PPR20193039 45.25 € | 1 | 45.25 € | ||

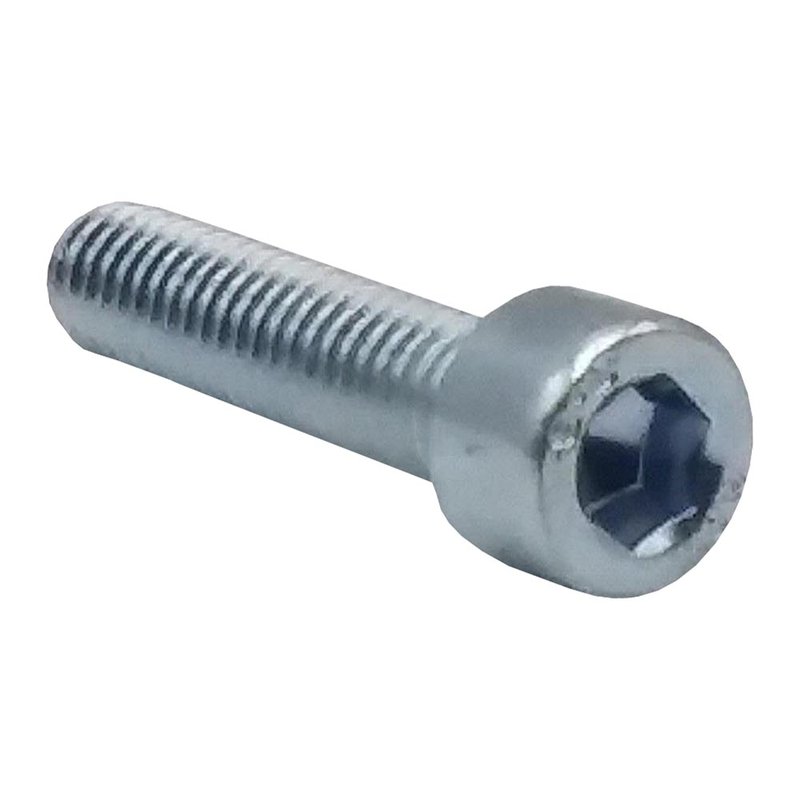

| 32 |  | Screw 6x25 Ref. PPR20197378 2.12 € | 3 | 2.12 € | ||
| 33 | | Brush housing D. 200MM Ref. PPR20193023 147.47 € | 1 | 147.47 € | ||
| 34 | | Brush housing nozzle Ref. PPR20193021 71.51 € | 1 | 71.51 € | ||

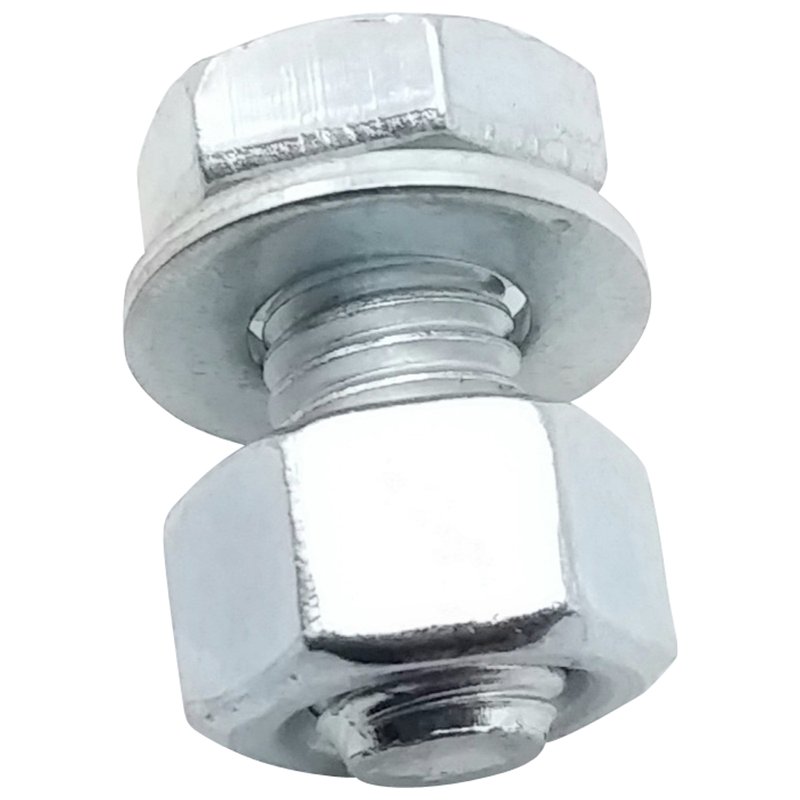

| 35 |  | Brush housing bolt Ref. PPR20197153 2.11 € | 2 | 2.11 € | ||

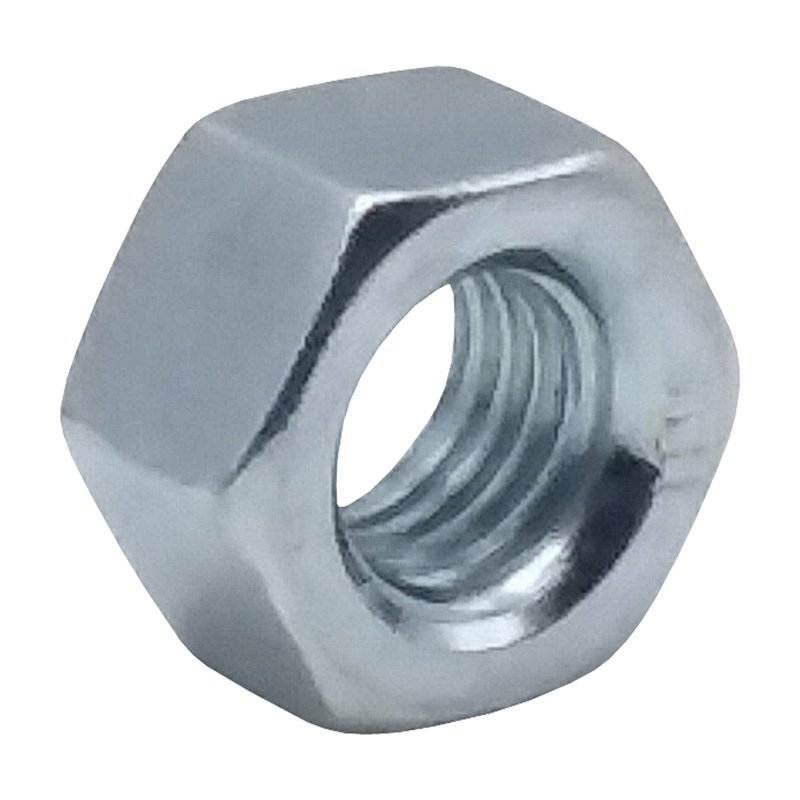

| 36 |  | Nut M8 UNI 5587 Ref. PPR20197346 2.11 € | 2 | 2.11 € | ||

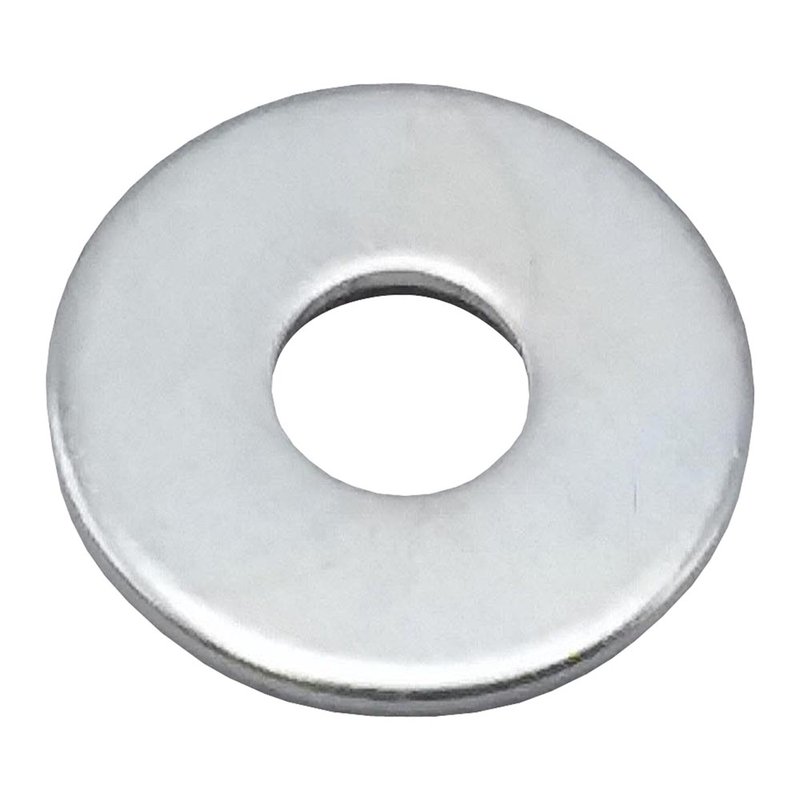

| 37 |  | Washer M8 Ref. PPR20197359 2.10 € | 2 | 2.10 € | ||

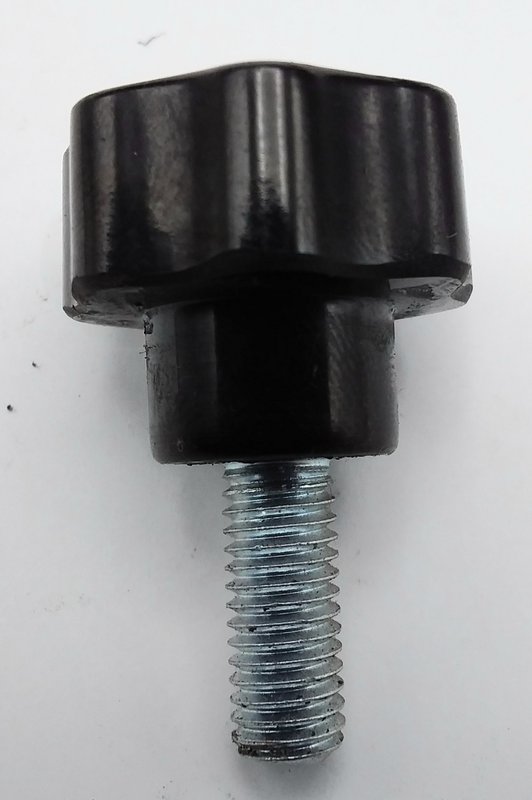

| 38 |  | MOLETTE SERRAGE D.30MM Ref. PPR20197350 7.18 € | 2 | 7.18 € | ||
| 39 |  | Spark guard right side Ref. PPR20197351 12.42 € | 1 | 12.42 € | ||
| 40 | | Screw 5X6 UNI 7985 Ref. PPR20197376 2.12 € | 1 | 2.12 € | ||

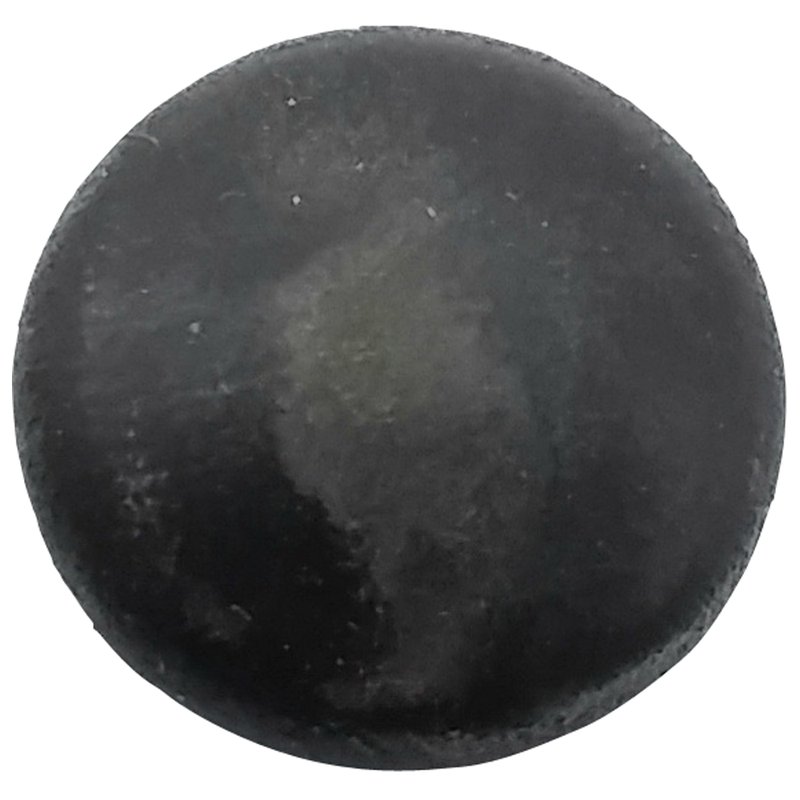

| 41 |  | Cap for plug Ref. PPR20197159 2.12 € | 2 | 2.12 € | ||
| 42 | | XPLR+BT circular brush Ref. PPR10306032 — | 1 | — |
