230V manual band saw -PSR125MVE

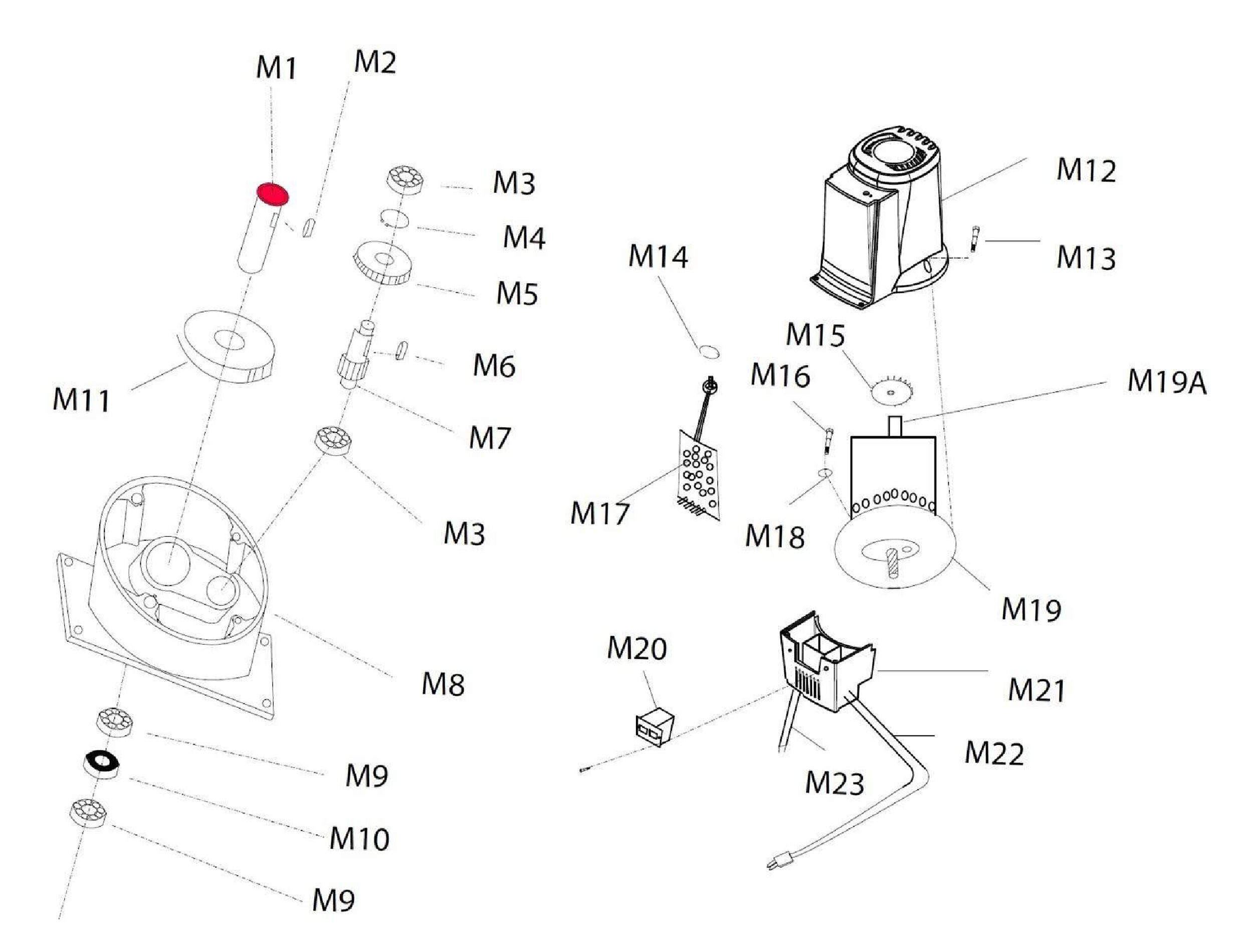

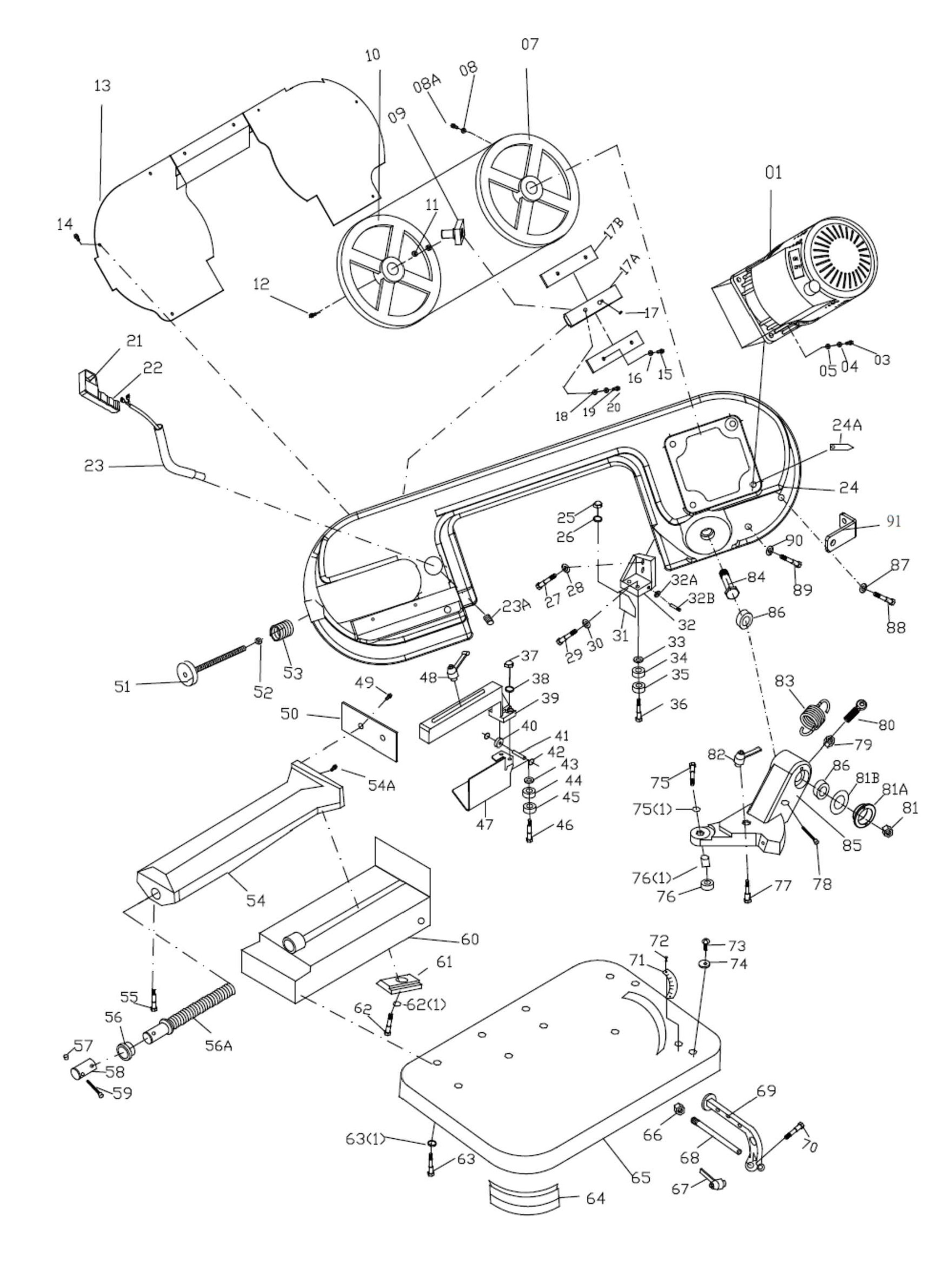

Exploded view — Ref. PPM00300001
| Item | Photo | Designation | Qty/machine | Quantity | Price | |
|---|---|---|---|---|---|---|
 | Set of 2 brushes Ref. PPR20193228 — | 1 | — | |||
| M0 | | Reducer shaft Ref. PPR20196646 43.54 € | 1 | 43.54 € | ||
| M0 | | Key 5x5x10 Ref. PPR20196647 8.62 € | 2 | 8.62 € | ||

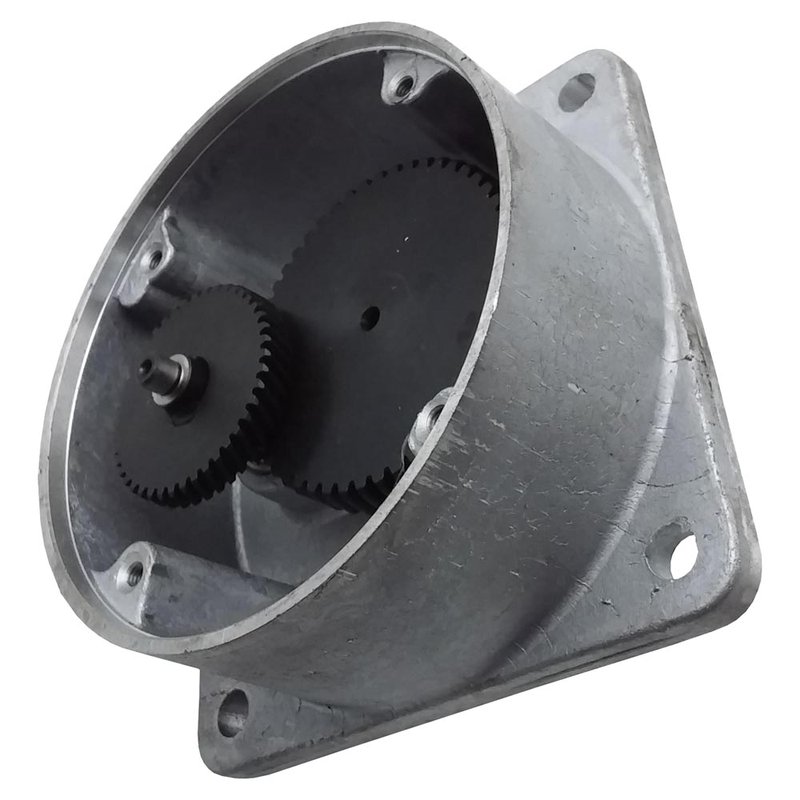

| M0 |  | Complete reducer Ref. PPR20196587 432.68 € | 1 | 432.68 € | ||
| M0 | | Circlips Ref. PPR20196648 4.30 € | 1 | 4.30 € | ||
| M0 | | Lower pinion 43T Ref. PPR20196649 51.87 € | 1 | 51.87 € | ||
| M0 | | Pinion pin Ref. PPR20196651 56.64 € | 1 | 56.64 € | ||
| M0 | | Gearbox Ref. PPR20196652 98.32 € | 1 | 98.32 € | ||
| M0 | | Bearing 6202 Ref. PPR20196653 17.07 € | 2 | 17.07 € | ||

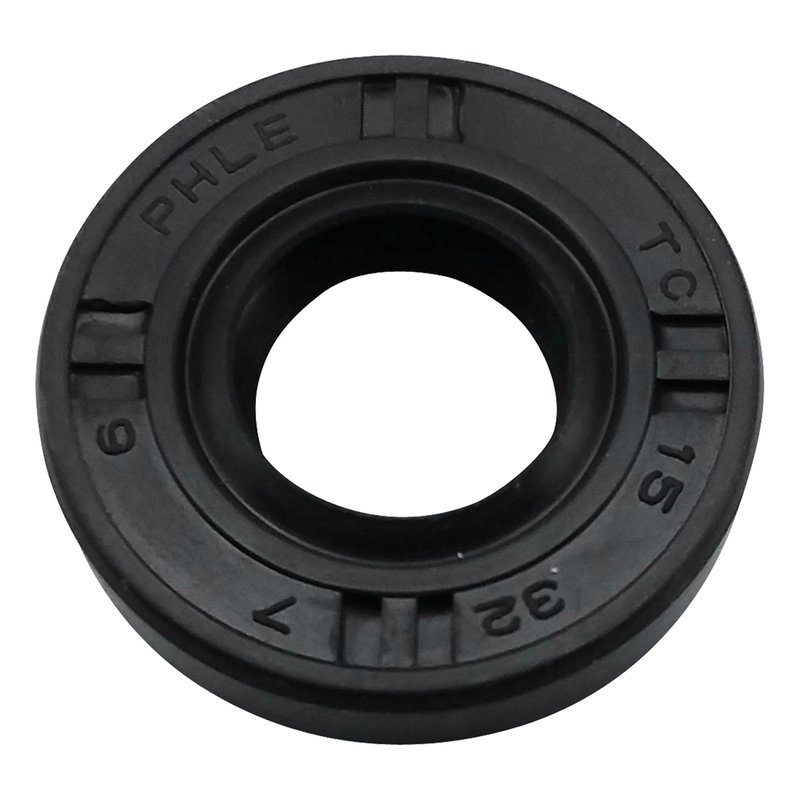

| M1 |  | Oil seal 15x32x7 Ref. PPR20196654 17.23 € | 1 | 17.23 € | ||
| M1 | | Upper pinion 50T Ref. PPR20196655 81.95 € | 1 | 81.95 € | ||
| M1 | | Upper motor housing Ref. PPR20193222 — | 1 | — | ||
| M1 | | Screw 4x10 Ref. PPR20196656 4.29 € | 1 | 4.29 € | ||
| M1 | | Nut M6 Ref. PPR20196657 4.32 € | 1 | 4.32 € | ||
| M1 | | Fan Ref. PPR20196658 21.66 € | 1 | 21.66 € | ||
| M1 | | Screw 5x20 Ref. PPR20196659 4.33 € | 1 | 4.33 € | ||
| M1 | | Complete electronic board Ref. PPR20193223 — | 1 | — | ||
| M1 | | Oil seal Ref. PPR20196660 17.38 € | 1 | 17.38 € | ||

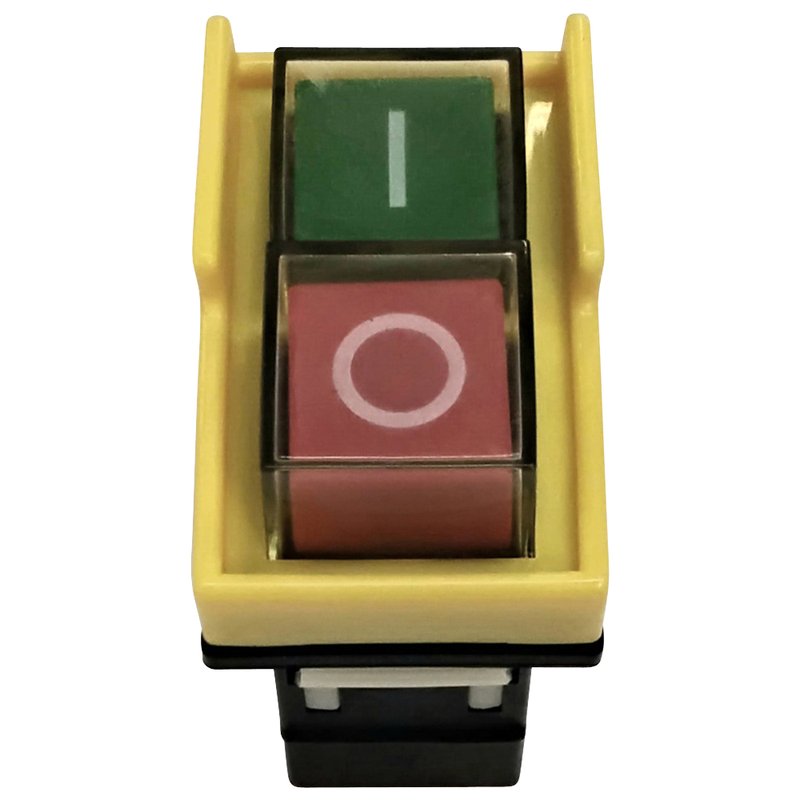

| M2 |  | Electromagnetic on/off switch Ref. PPR20197327 119.43 € | 1 | 119.43 € | ||

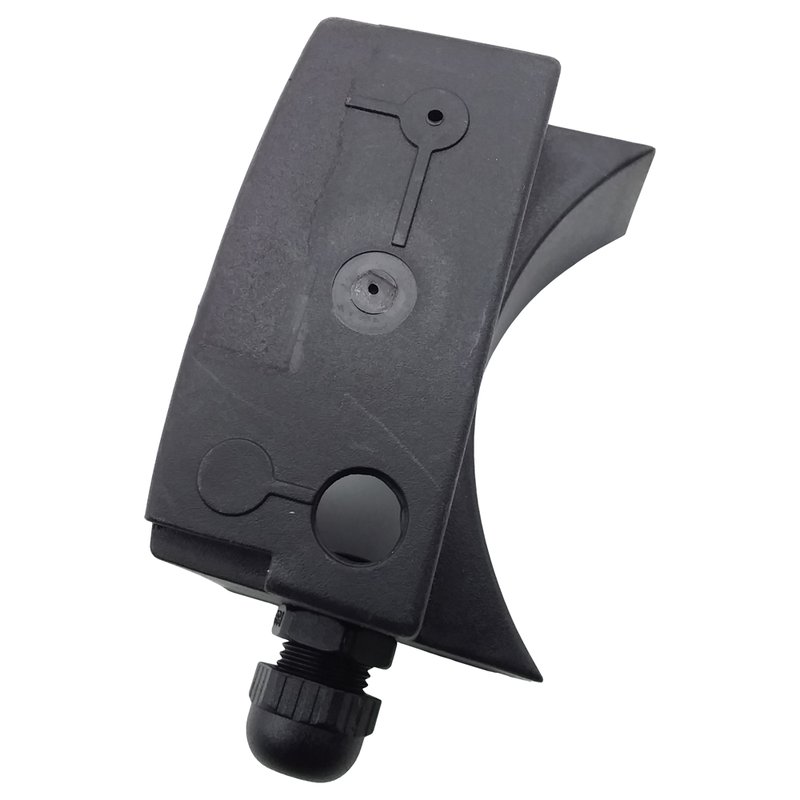

| M2 |  | Lower motor housing Ref. PPR20196577 30.28 € | 1 | 30.28 € | ||

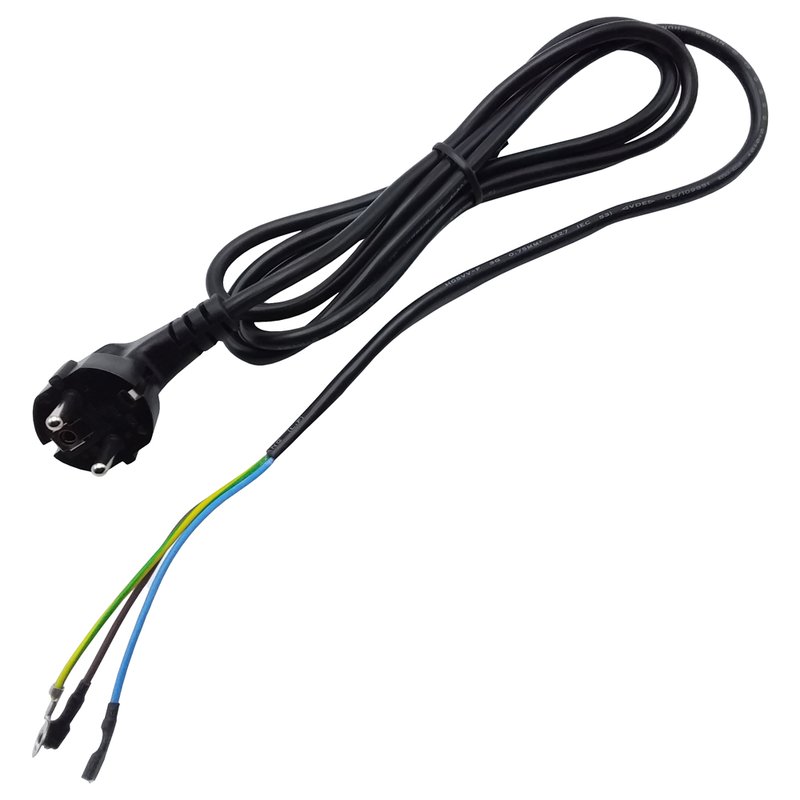

| M2 |  | Power cable Ref. PPR20196619 64.69 € | 1 | 64.69 € | ||

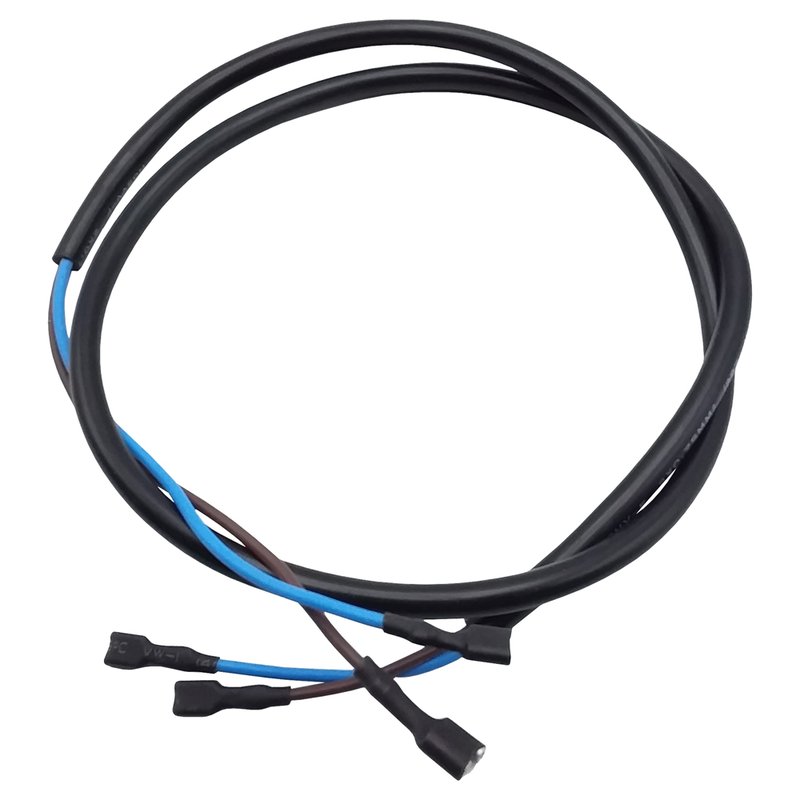

| M2 |  | Trigger switch cable Ref. PPR20196560 43.17 € | 1 | 43.17 € | ||
| 01 | | Motor only 1KW 230V single-phase Ref. PPR20193224 — | 1 | — | ||
| 03 | | Screw 8x25 Ref. PPR20196620 4.33 € | 6 | 4.33 € | ||
| 04 | | Spring washer M8 Ref. PPR20196645 4.32 € | 7 | 4.32 € | ||
| 05 | | Washer M8x16x2 Ref. PPR20196681 4.35 € | 6 | 4.35 € | ||

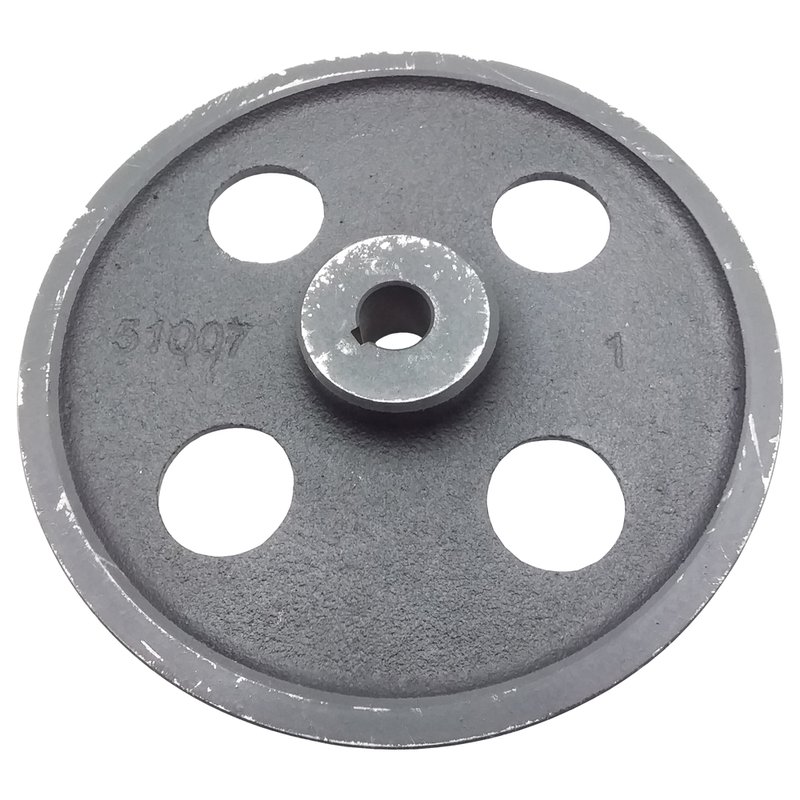

| 7 |  | Drive pulley Ref. PPR20196547 64.53 € | 1 | 64.53 € | ||
| 08 | | Washer M6 Ref. PPR20196616 4.32 € | 12 | 4.32 € | ||

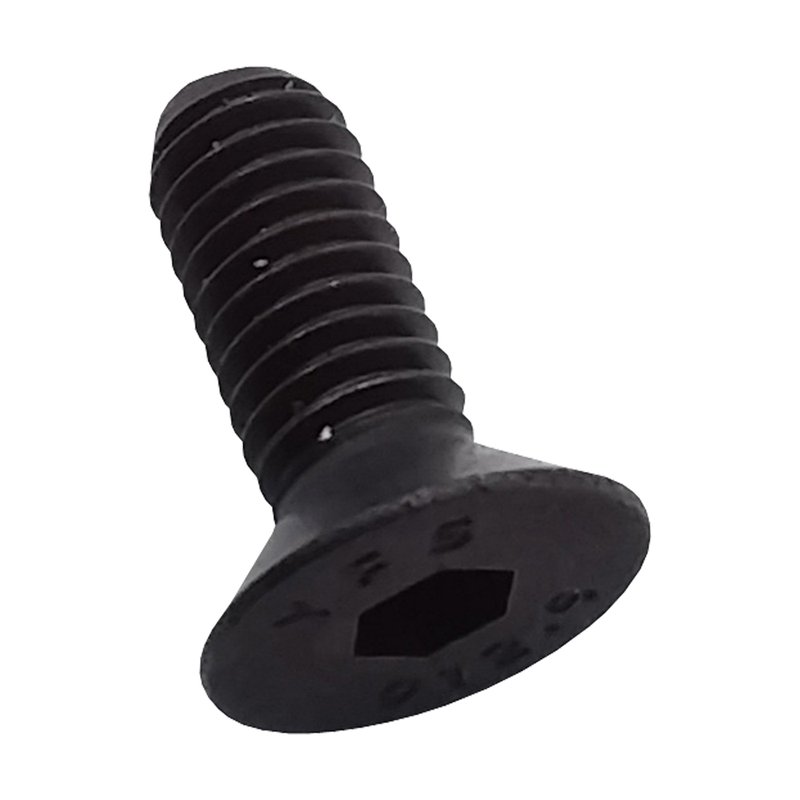

| 08 |  | Countersunk socket screw M6X12 Ref. PPR20196592 4.31 € | 2 | 4.31 € | ||

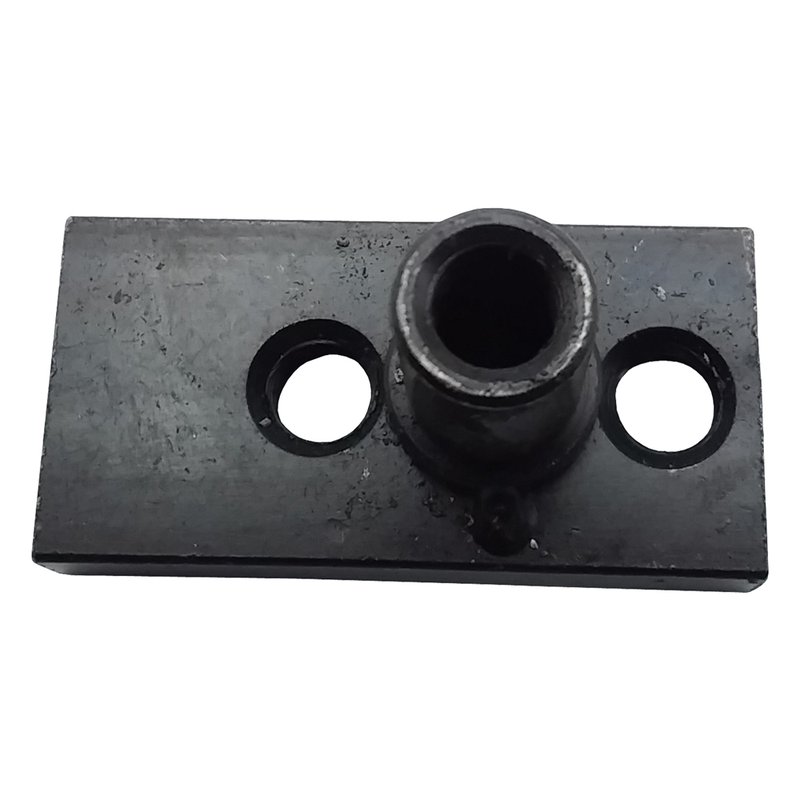

| 9 |  | Tension pulley support Ref. PPR20196548 47.43 € | 1 | 47.43 € | ||

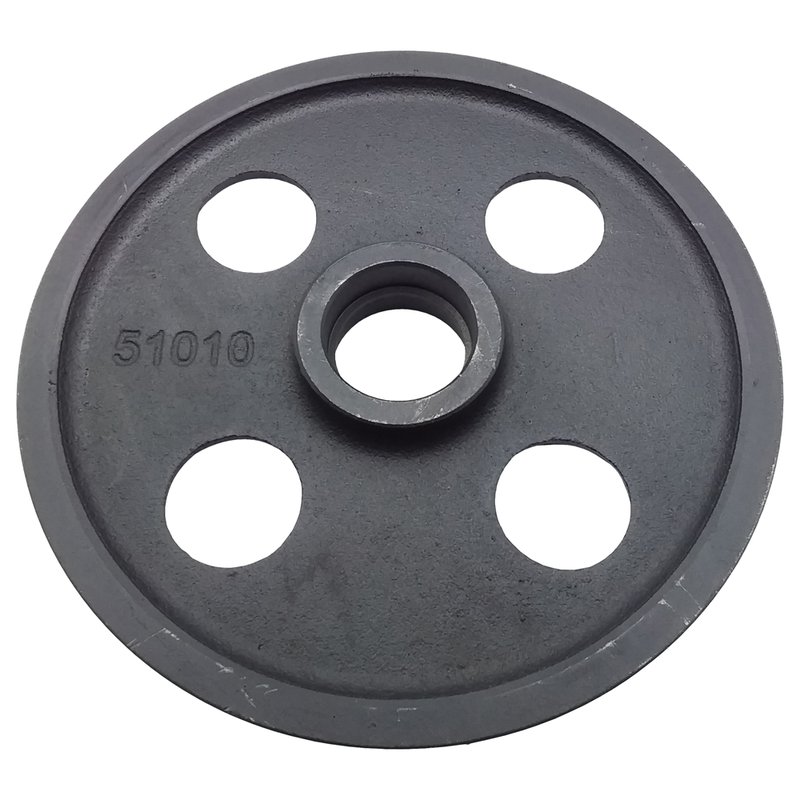

| 10 |  | Tension pulley Ref. PPR20196549 72.99 € | 1 | 72.99 € | ||

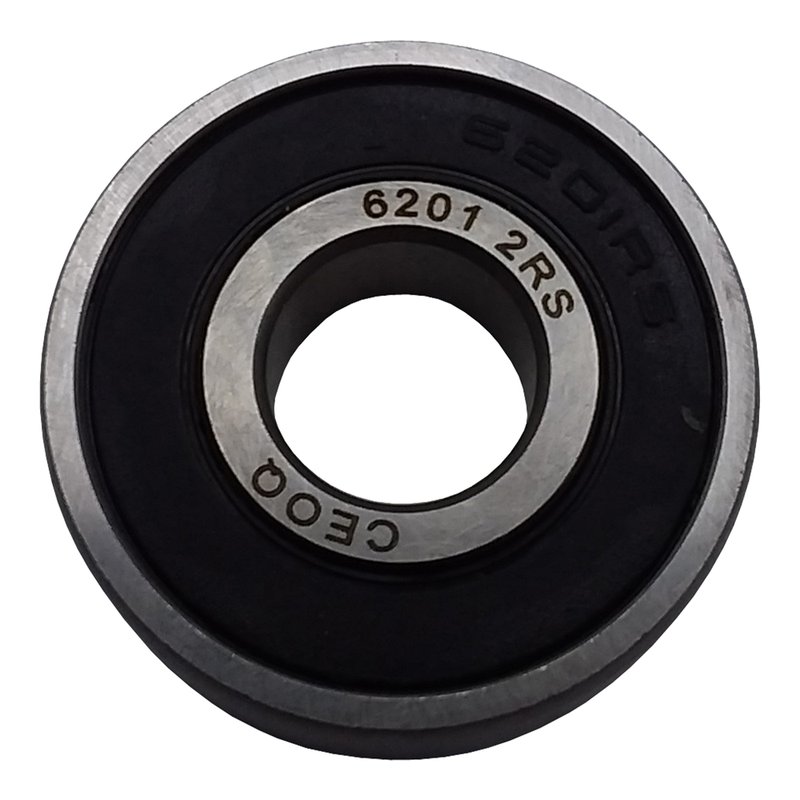

| 11 |  | Bearing 6201ZZ Ref. PPR20196581 17.33 € | 2 | 17.33 € | ||
| 12 | | Screw 8x16 Ref. PPR20196625 4.29 € | 2 | 4.29 € | ||
| 13 | | Saw bow housing Ref. PPR20193207 — | 1 | — | ||

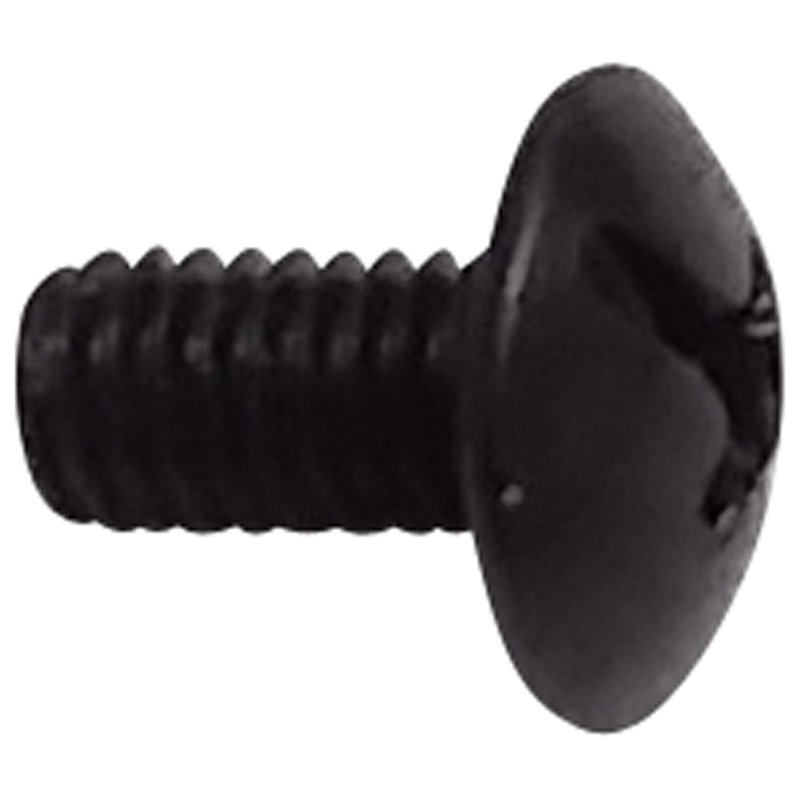

| 14 |  | Screw 4x8 Ref. PPR20196622 4.34 € | 6 | 4.34 € | ||
| 15 | | Screw 5x10 Ref. PPR20196623 4.34 € | 4 | 4.34 € | ||
| 16 | | Spring washer M5 Ref. PPR20196624 4.31 € | 4 | 4.31 € | ||

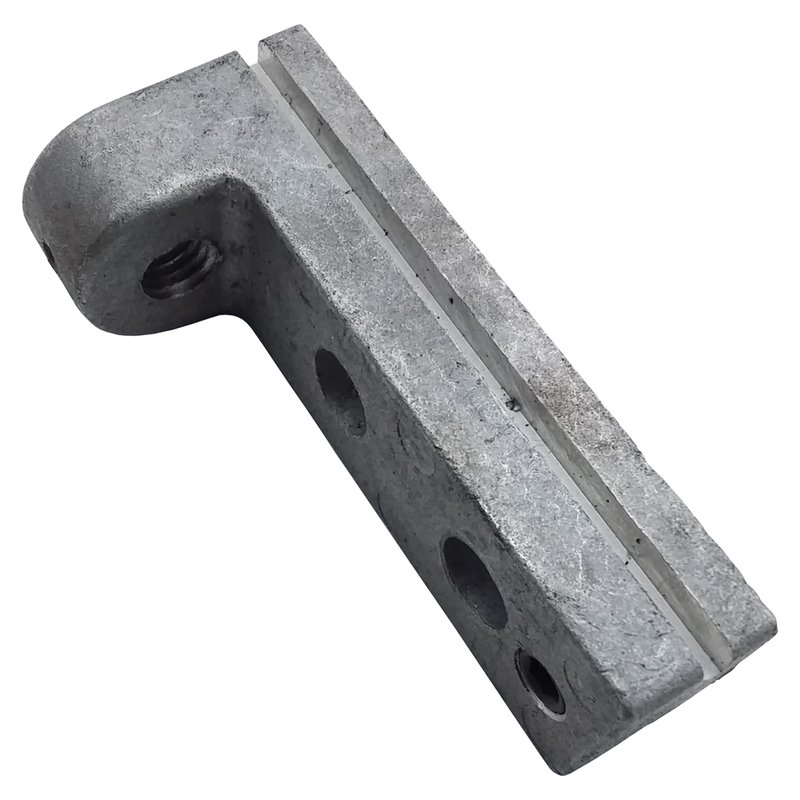

| 17 |  | Band tension sliding block Ref. PPR20196557 42.82 € | 1 | 42.82 € | ||

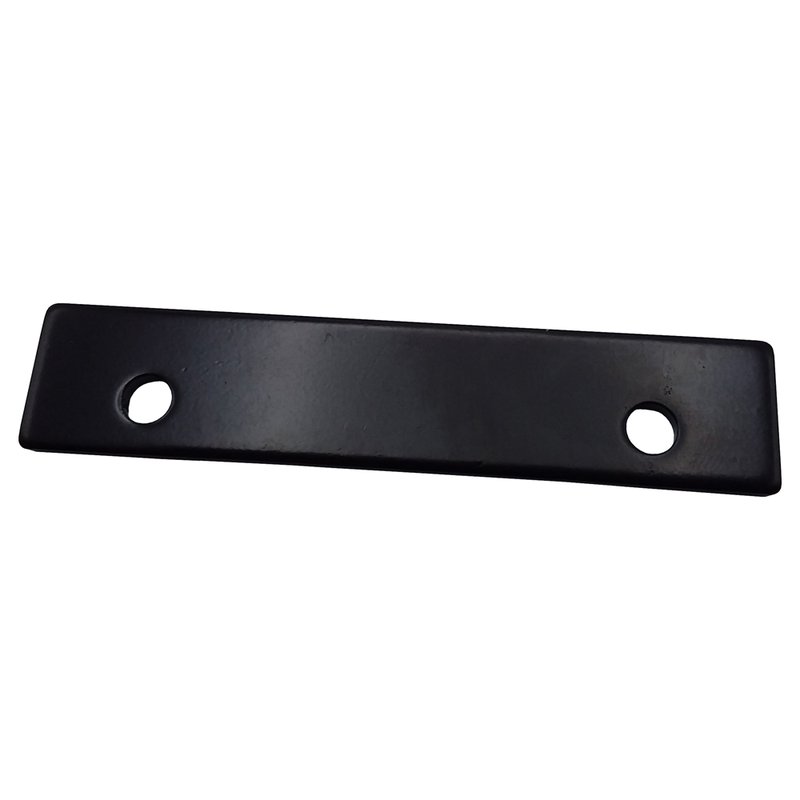

| 17 |  | Band tension slide Ref. PPR20196558 8.61 € | 2 | 8.61 € | ||

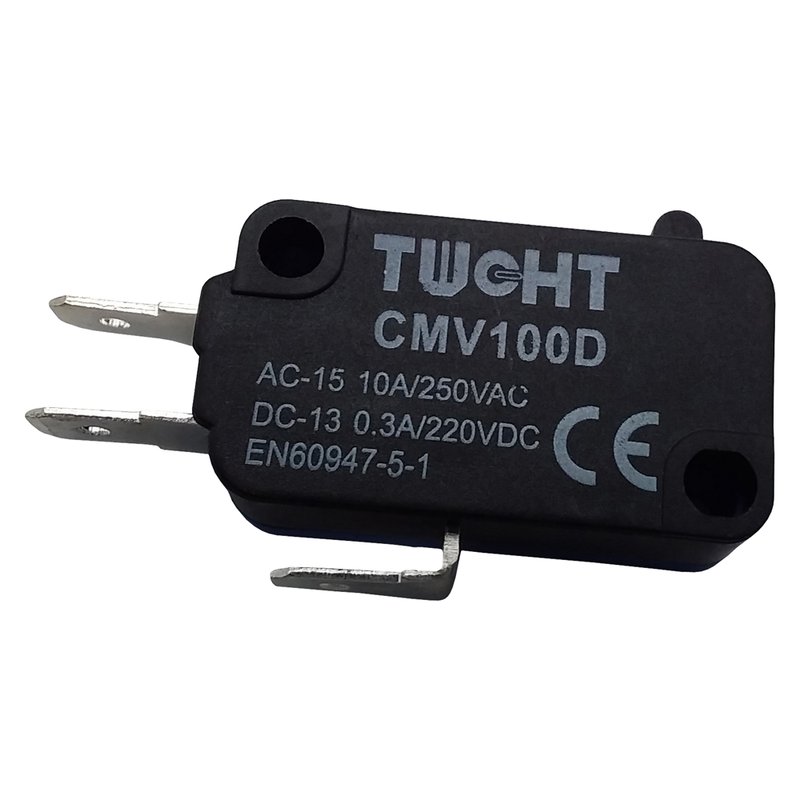

| 21 |  | Control handle trigger button Ref. PPR20196551 13.12 € | 1 | 13.12 € | ||

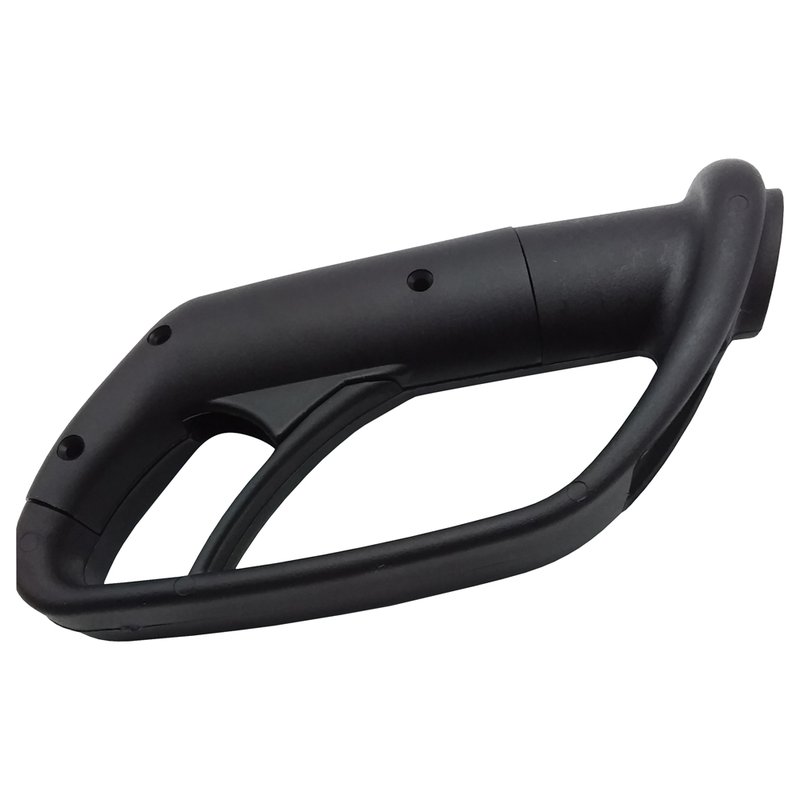

| 22 |  | Trigger handle Ref. PPR20196626 39.11 € | 1 | 39.11 € | ||

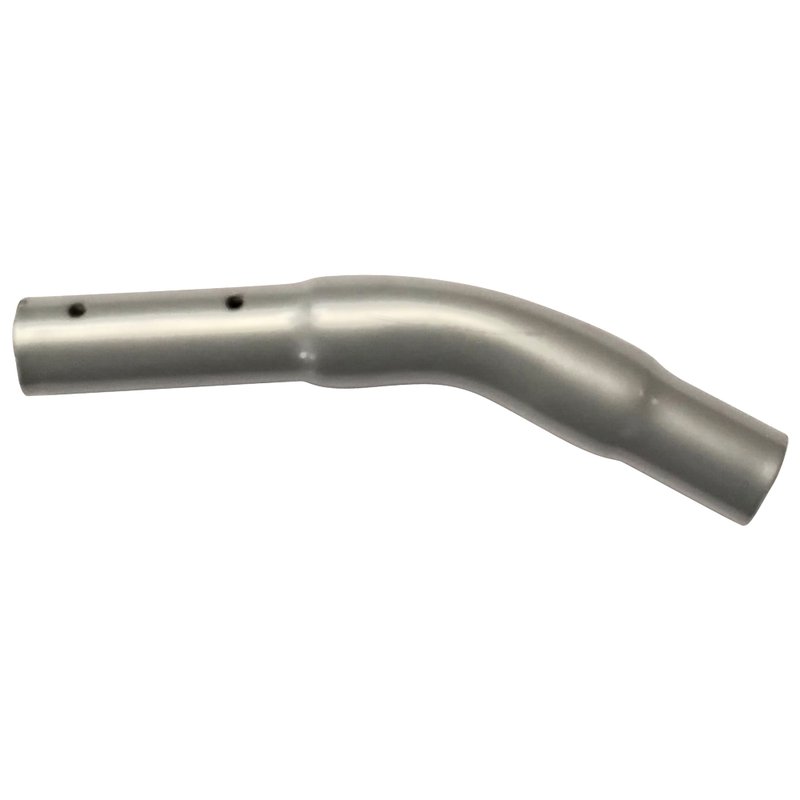

| 23 |  | Control arm Ref. PPR20196627 39.04 € | 1 | 39.04 € | ||
| 23 | | Screw M6x8 Ref. PPR20195067 2.10 € | 1 | 2.10 € | ||
| 24 | | Saw bow Ref. PPR20193208 — | 1 | — | ||
| 24 | | Set of 3 bimetal blades M42 XPLR+LSCR Ref. PPR20198582 — | 1 | — | ||

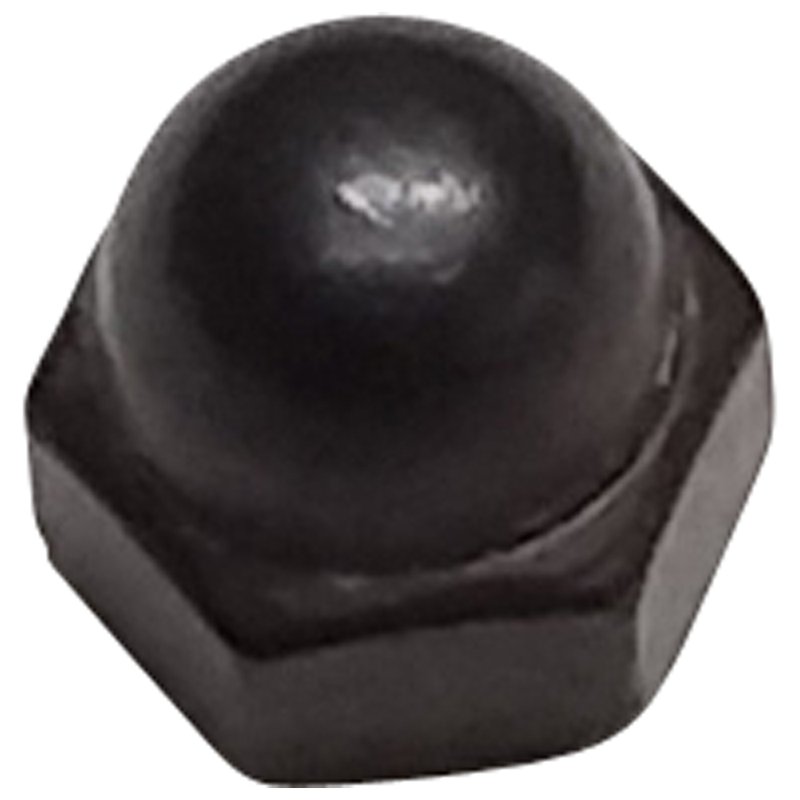

| 25 |  | Nut M6 Ref. PPR20196606 10.64 € | 4 | 10.64 € | ||

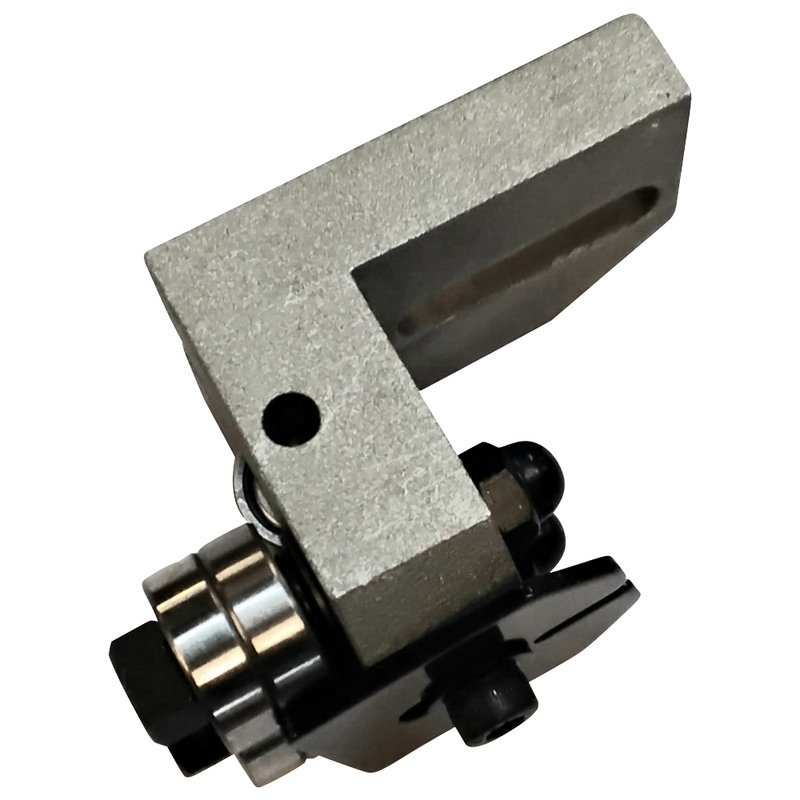

| 25 |  | Fixed band guide for saw Ref. PPR20197338 181.77 € | 1 | 181.77 € | ||
| 26 | | Spring washer M6 Ref. PPR20196601 4.35 € | 4 | 4.35 € | ||
| 27 | | Screw 6x25 Ref. PPR20196629 4.30 € | 2 | 4.30 € | ||
| 29 | | Screw 5x10 Ref. PPR20196630 4.30 € | 1 | 4.30 € | ||
| 31 | | Fixed rear band guide protection Ref. PPR20196607 13.08 € | 1 | 13.08 € | ||
| 32 | | Fixed rear band guide Ref. PPR20196608 56.63 € | 1 | 56.63 € | ||
| 32 | | Bearing 625 ZZ Ref. PPR20196611 13.14 € | 3 | 13.14 € | ||

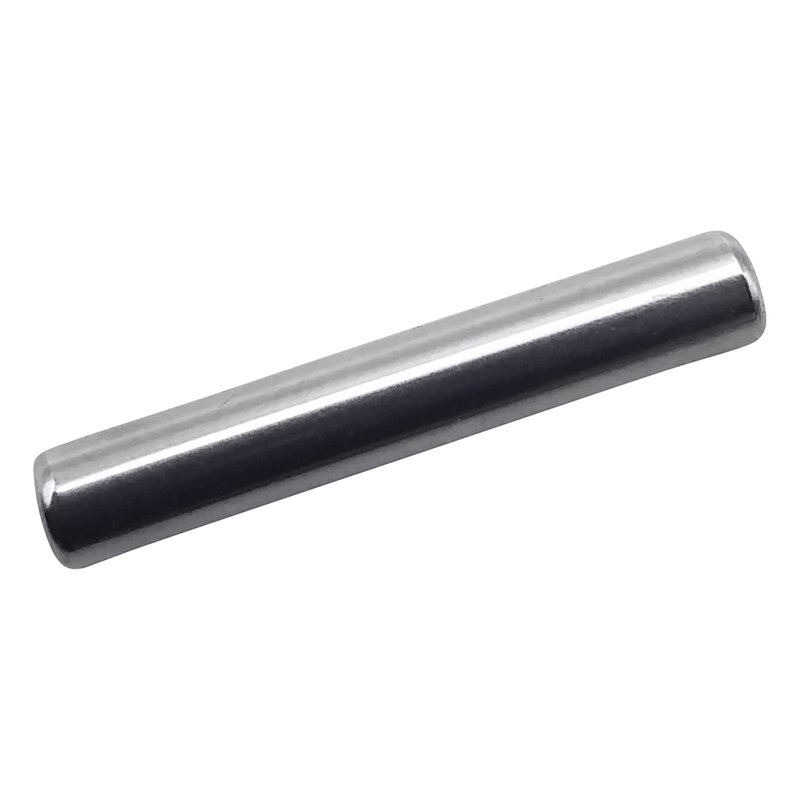

| 32 |  | Pin Ref. PPR20196612 9.34 € | 1 | 9.34 € | ||

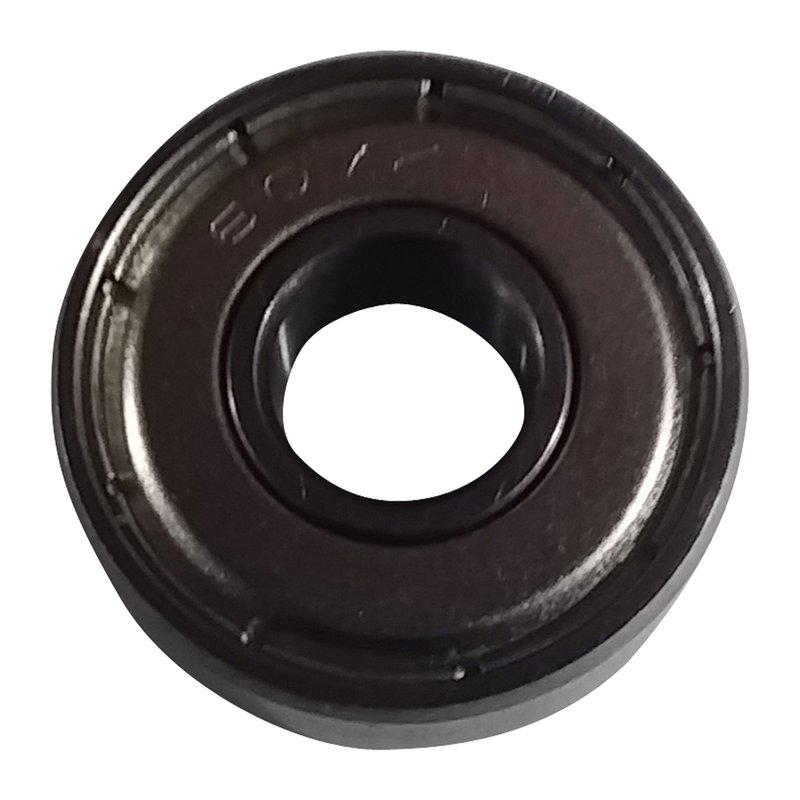

| 34 |  | Bearing 607 Z Ref. PPR20197486 9.17 € | 10 | 9.17 € | ||

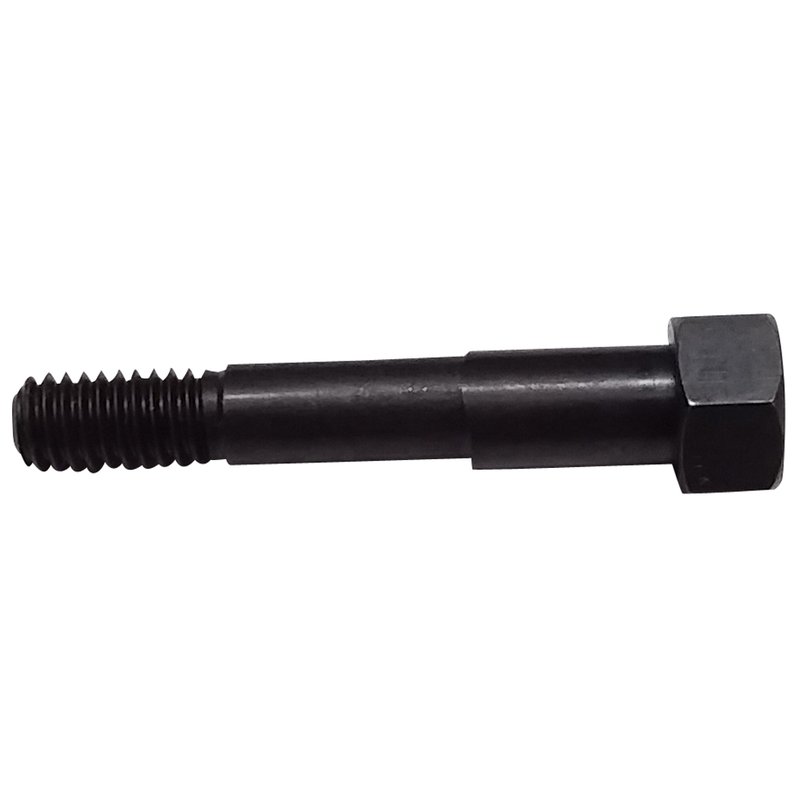

| 36 |  | Eccentric pin Ref. PPR20196609 22.30 € | 4 | 22.30 € | ||

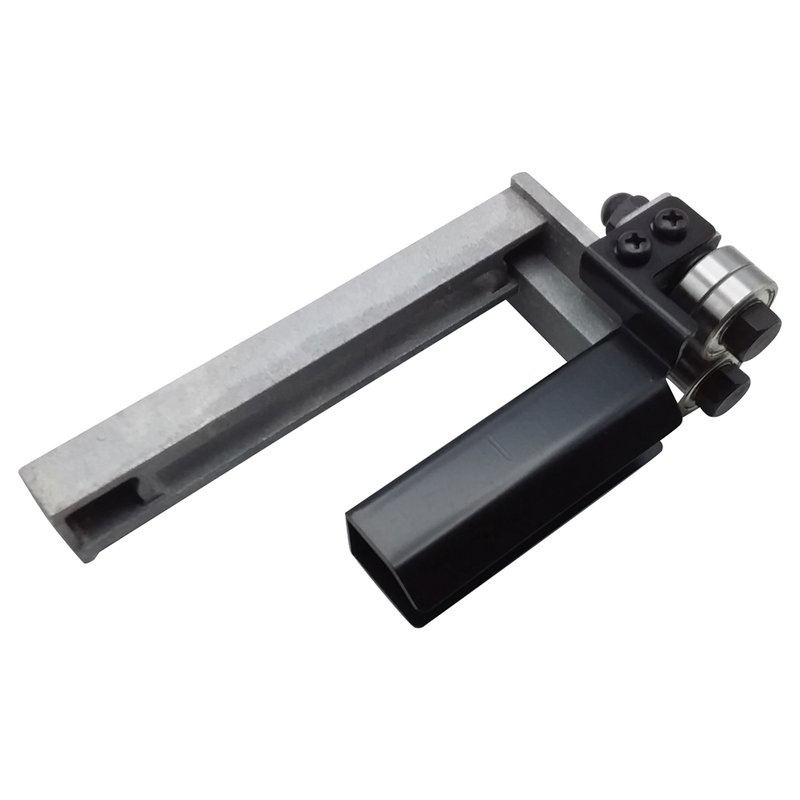

| 37 |  | Complete movable band guide Ref. PPR20197339 118.51 € | 1 | 118.51 € | ||
| 39 | | Movable front band guide Ref. PPR20196617 64.81 € | 1 | 64.81 € | ||
| 41 | | Pin Ref. PPR20196618 8.68 € | 2 | 8.68 € | ||
| 42 | | Washer M5 Ref. PPR20196631 4.29 € | 2 | 4.29 € | ||

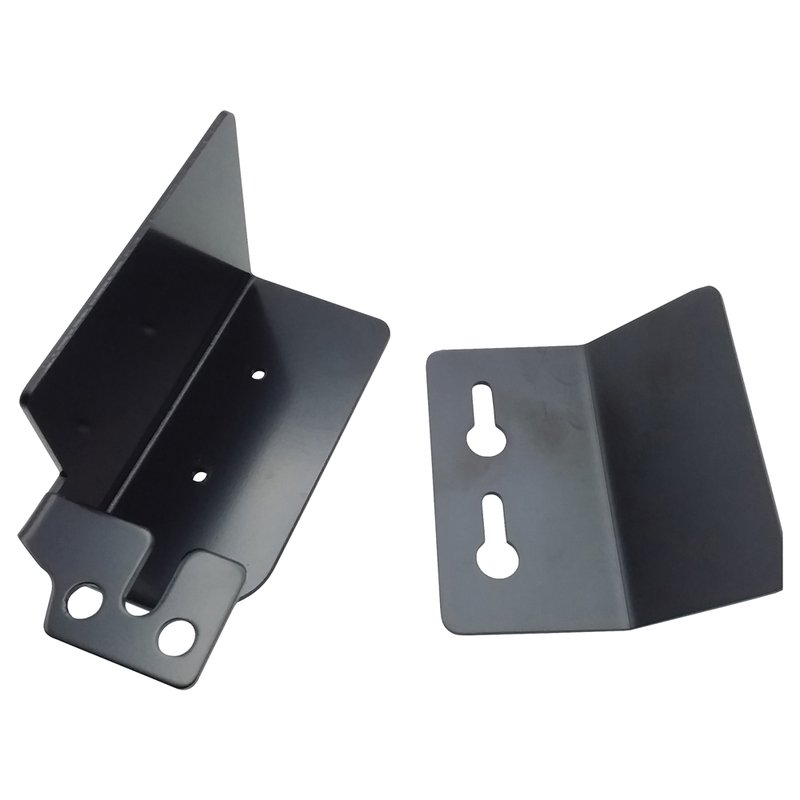

| 47 |  | Movable front band guide protection Ref. PPR20196552 26.18 € | 1 | 26.18 € | ||

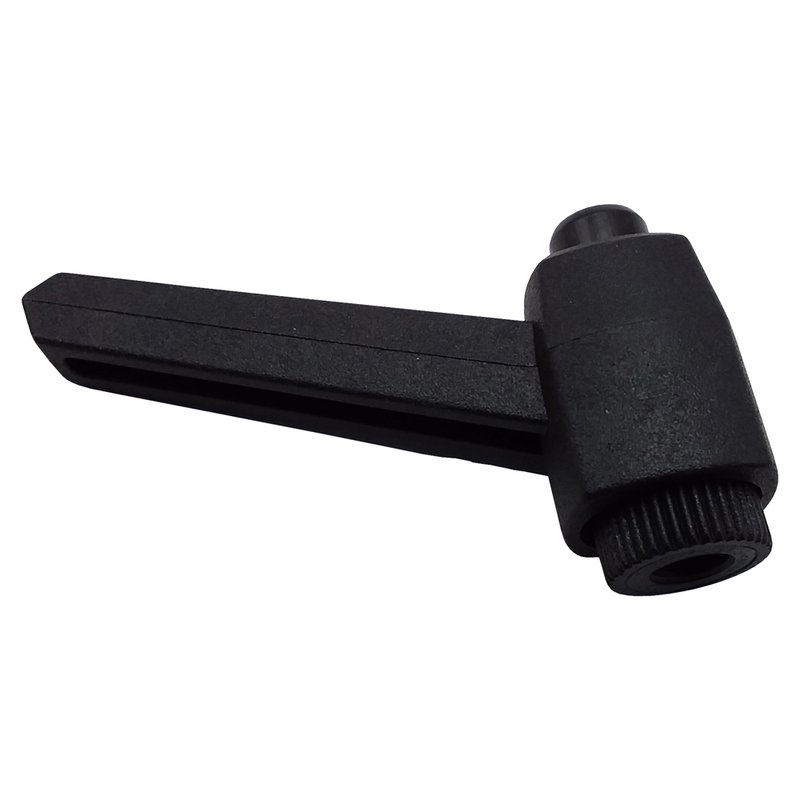

| 48 |  | Clamping handle Ref. PPR20196553 17.32 € | 2 | 17.32 € | ||
| 49 | | Complete vise for band saw Ref. PPR20193225 — | 1 | — | ||
| 50 | | Vise plate Ref. PPR20193226 — | 1 | — | ||

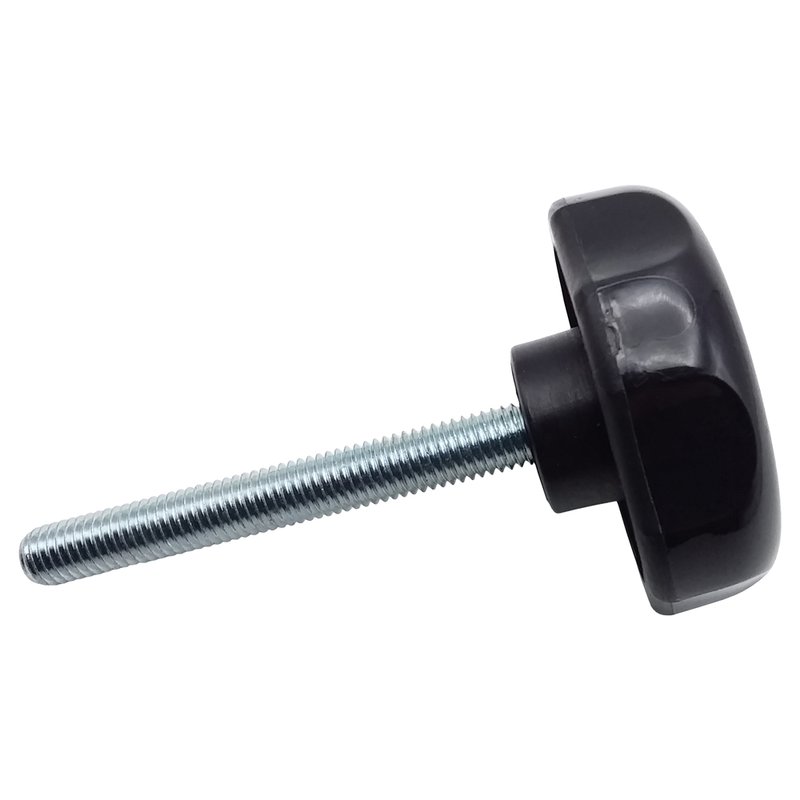

| 51 |  | Band tension handwheel Ref. PPR20196554 17.34 € | 1 | 17.34 € | ||
| 52 | | Washer Ref. PPR20193209 — | 1 | — | ||

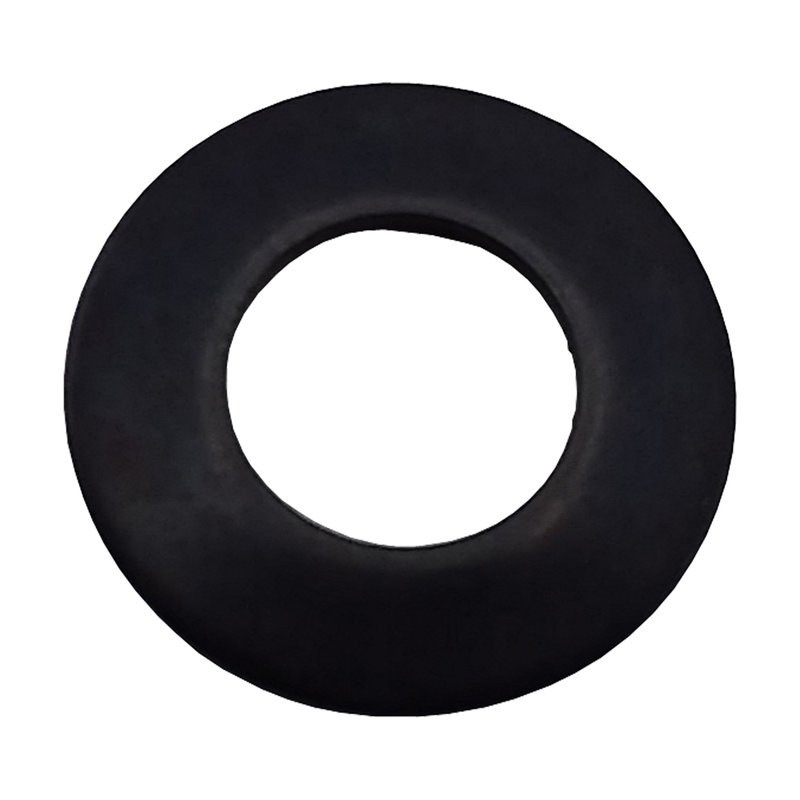

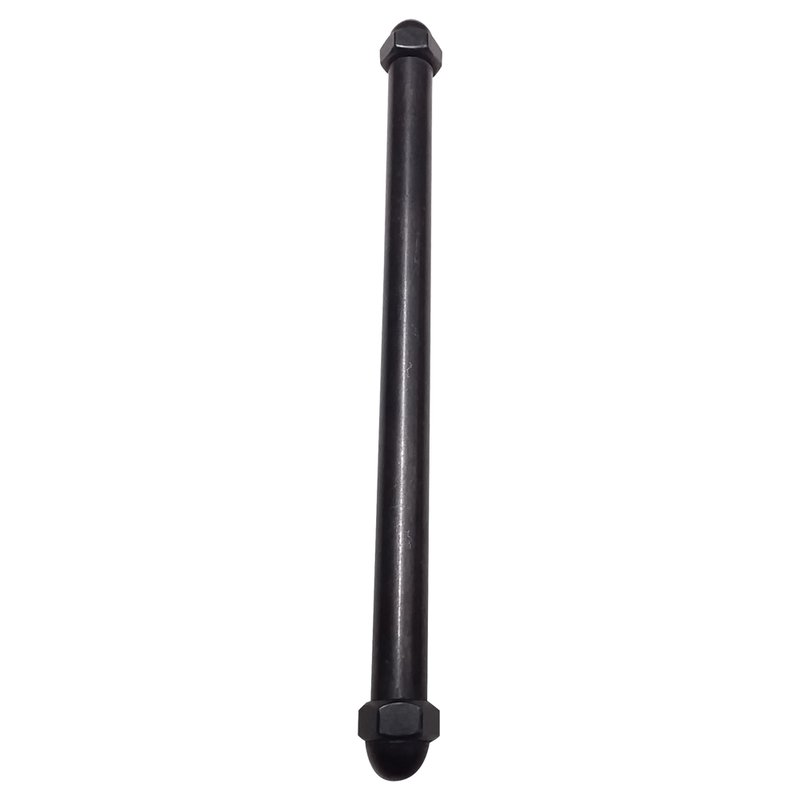

| 53 |  | Belleville washer M10 Ref. PPR20196595 4.32 € | 8 | 4.32 € | ||
| 54 | | Movable vise Ref. PPR20193229 — | 1 | — | ||
| 54 | | Screw Ref. PPR20193210 — | 1 | — | ||
| 55 | | Screw 4x6 Ref. PPR20196596 4.36 € | 1 | 4.36 € | ||
| 56 | | Guide bushing Ref. PPR20196597 21.64 € | 1 | 21.64 € | ||
| 56 | | Vise lead screw Ref. PPR20196598 64.27 € | 1 | 64.27 € | ||
| 57 |  | Crank Ref. PPR20197445 12.65 € | 1 | 12.65 € | ||
| 58 | | Vise crank support Ref. PPR20196599 30.24 € | 1 | 30.24 € | ||
| 60 | | Base Ref. PPR20193227 — | 1 | — | ||

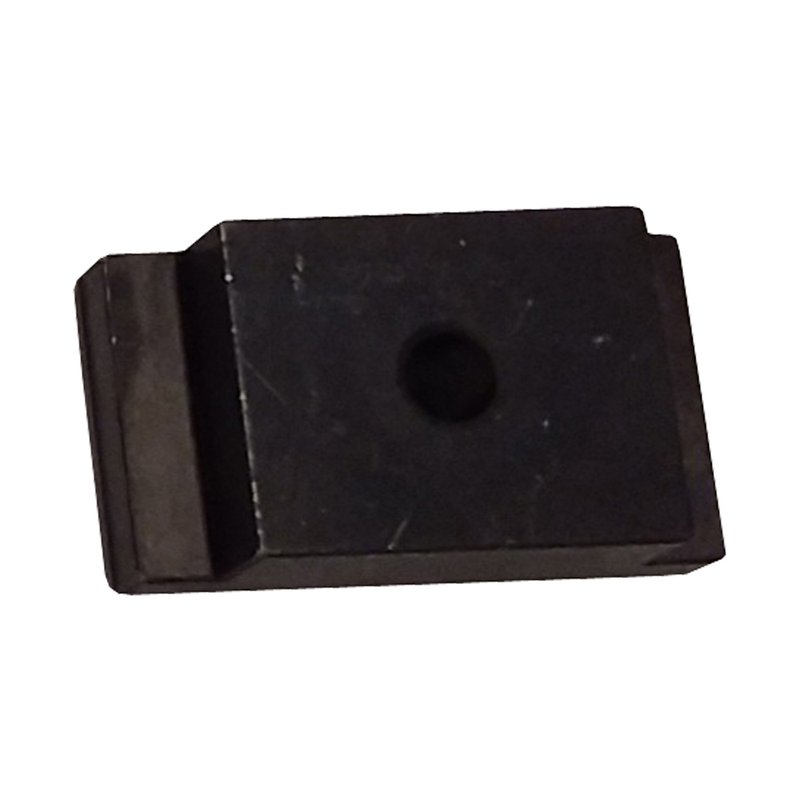

| 61 |  | Clamp Ref. PPR20197194 22.83 € | 1 | 22.83 € | ||

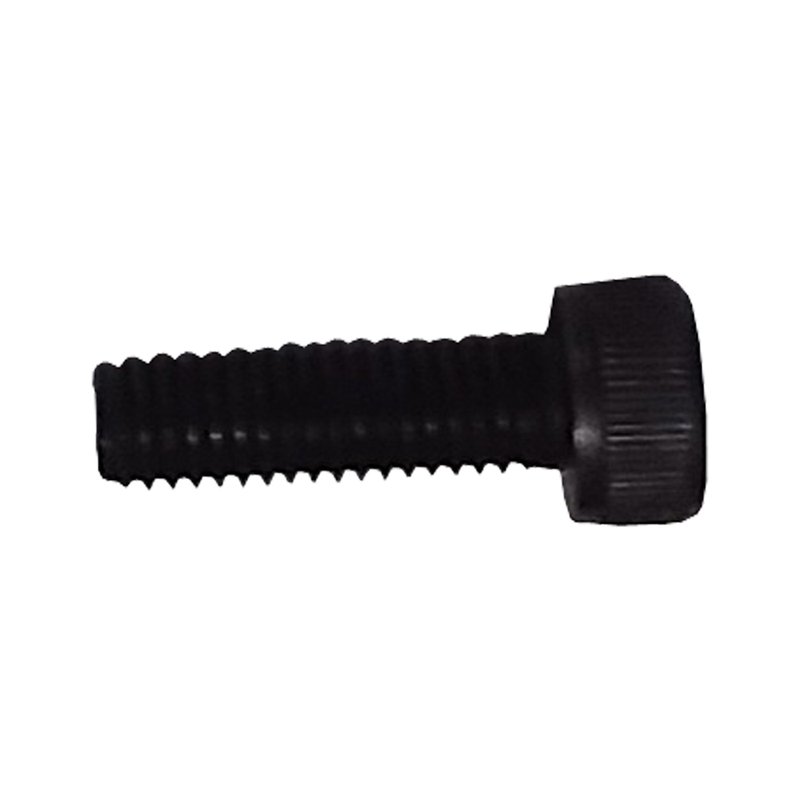

| 62 |  | Socket head cap screw M6X20 Ref. PPR20197195 3.36 € | 1 | 3.36 € | ||

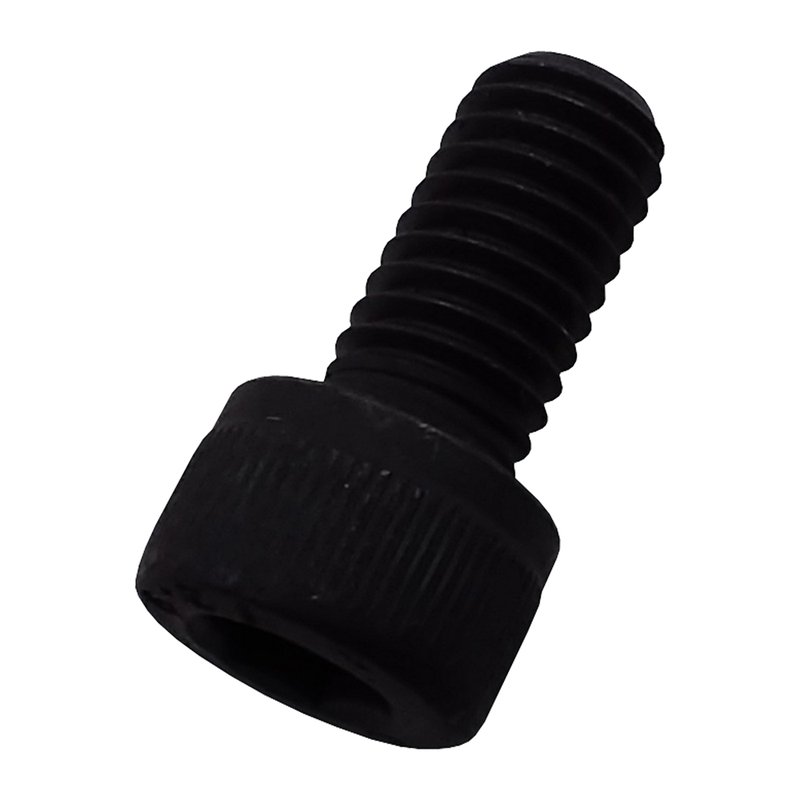

| 63 |  | Screw 8x16 Ref. PPR20196550 4.32 € | 6 | 4.32 € | ||

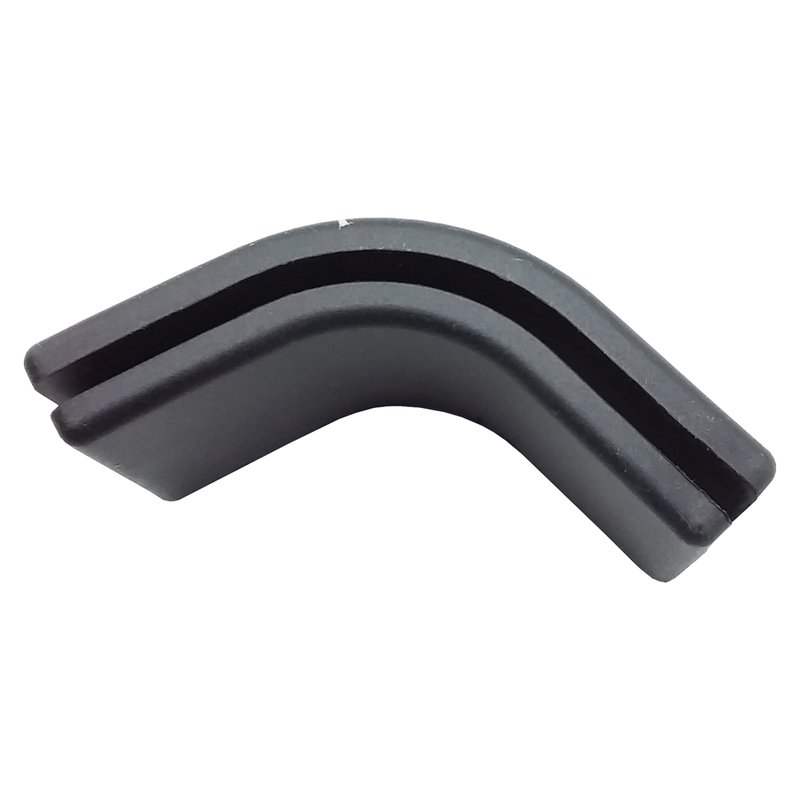

| 64 |  | Foot Ref. PPR20196602 41.95 € | 4 | 41.95 € | ||
| 65 | | Table Ref. PPR20193230 — | 1 | — | ||
| 66 | | Nut M12 Ref. PPR20196633 4.31 € | 1 | 4.31 € | ||

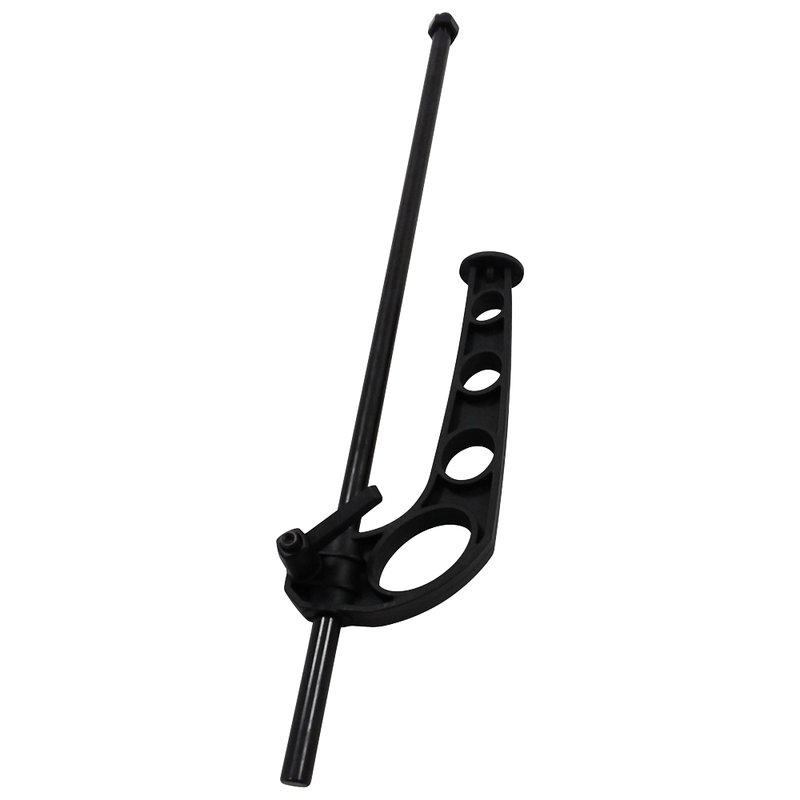

| 66 |  | Complete cutting stop Ref. PPR20196559 125.88 € | 1 | 125.88 € | ||
| 68 | | Cutting stop pin Ref. PPR20196603 51.40 € | 1 | 51.40 € | ||
| 69 | | Cutting stop Ref. PPR20196634 43.11 € | 1 | 43.11 € | ||
| 70 | | Screw 6x20 Ref. PPR20196635 8.65 € | 1 | 8.65 € | ||
| 71 | | Bow angle scale Ref. PPR20195019 2.12 € | 1 | 2.12 € | ||
| 73 | | Screw 6x12 Ref. PPR20196636 4.32 € | 2 | 4.32 € | ||
| 74 | | Cutting angle stop 6*21*3 Ref. PPR20196637 8.59 € | 2 | 8.59 € | ||
| 75 | | Screw 6x35 Ref. PPR20196613 4.30 € | 1 | 4.30 € | ||
| 76 | | Nut M6 Ref. PPR20196614 8.70 € | 1 | 8.70 € | ||
| 76 | | Spacer Ref. PPR20196615 8.65 € | 1 | 8.65 € | ||
| 77 | | Screw 3/8x1 1/2 Ref. PPR20196604 17.38 € | 1 | 17.38 € | ||
| 78 | | Bow locking pin Ref. PPR20196638 17.45 € | 1 | 17.45 € | ||
| 79 | | Nut Ref. PPR20193211 — | 1 | — | ||
| 80 | | Tension hook Ref. PPR20194507 64.71 € | 1 | 64.71 € | ||
| 81 | | Tab nut Ref. PPR20193212 — | 1 | — | ||
| 81 | | Bushing Ref. PPR20193213 — | 1 | — | ||
| 81 | | Bearing cover Ref. PPR20193214 — | 1 | — | ||
| 82 | | Bow support clamping handle 3/8 Ref. PPR20196605 30.15 € | 1 | 30.15 € | ||

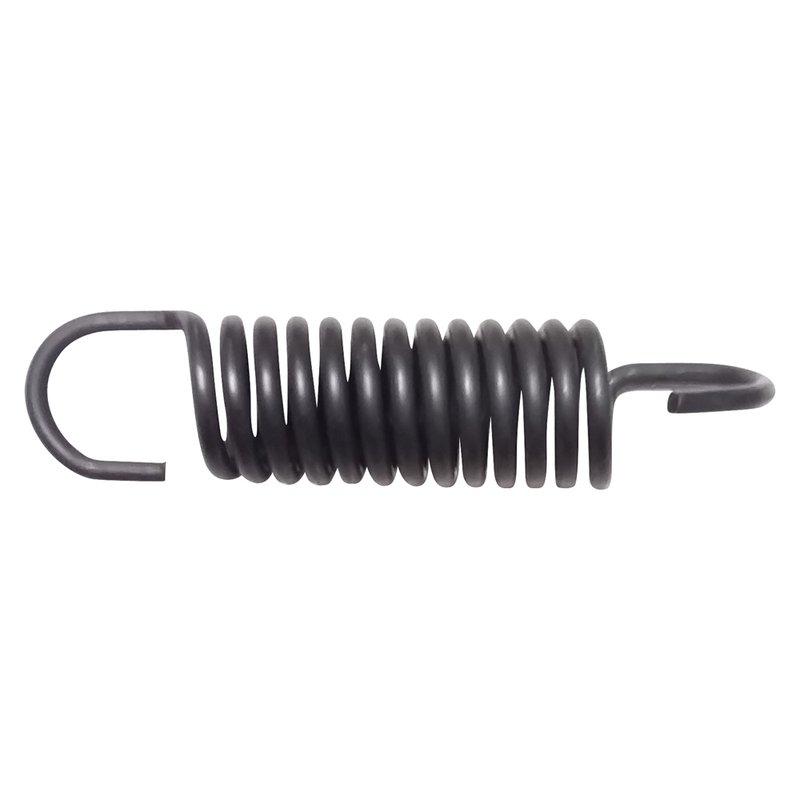

| 83 |  | Return spring for saw Ref. PPR20197441 25.06 € | 1 | 25.06 € | ||
| 84 | | Bow support pin Ref. PPR20196642 17.46 € | 1 | 17.46 € | ||
| 85 | | Rotation support Ref. PPR20193215 — | 1 | — | ||
| 86 | | Bearing 30202 Ref. PPR20193216 — | 2 | — | ||
| 87 | | Washer Ref. PPR20193217 — | 1 | — | ||
| 88 | | Screw Ref. PPR20193218 — | 1 | — | ||
| 89 | | Screw Ref. PPR20193219 — | 1 | — | ||
| 90 | | Nut Ref. PPR20193220 — | 1 | — | ||
| 91 | | Spring plate Ref. PPR20193221 — | 1 | — |
