Mobile bench drill, capacity 20 mm - 230V - 16 speeds - PPE20

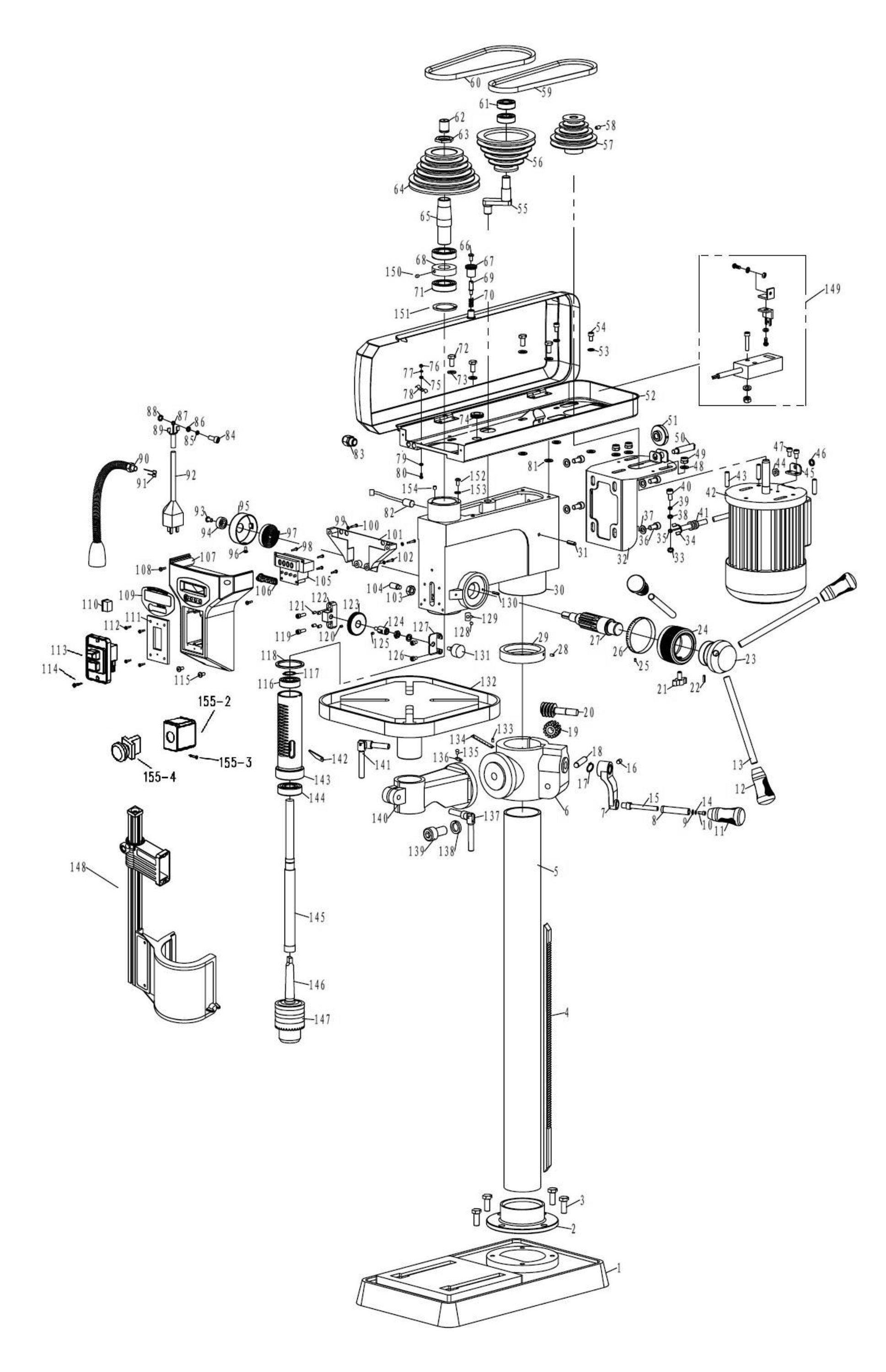

Exploded view — Ref. PPM00400001
| Item | Photo | Designation | Qty/machine | Quantity | Price | |
|---|---|---|---|---|---|---|

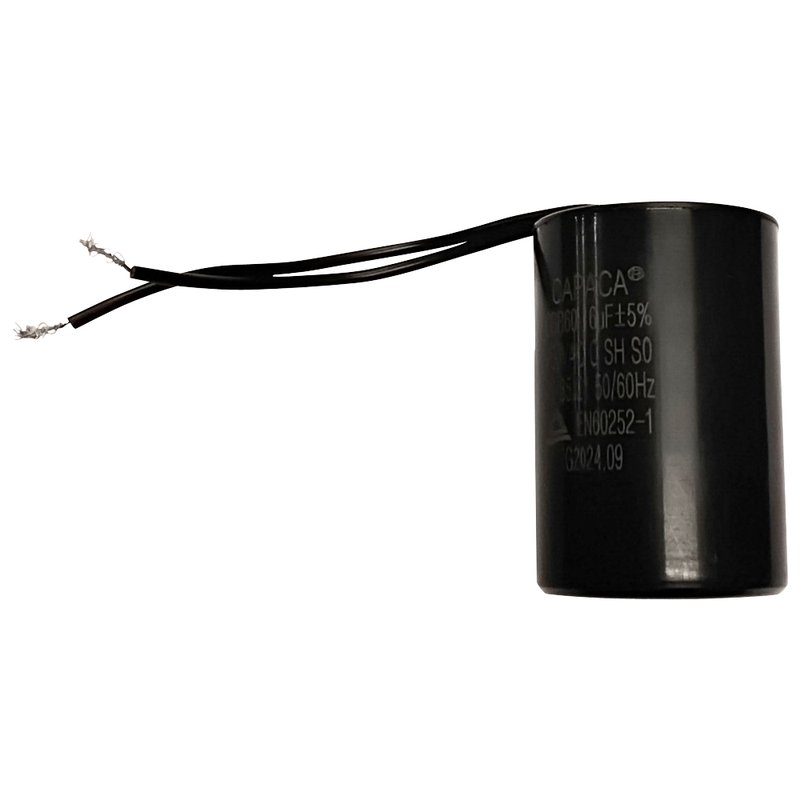

 | Capacitor 16µF Ref. PPR20597953 7.51 € | 1 | 7.51 € | |||
 | Transformer for lamp 240V AC-7 V DC Ref. PPR20597599 23.13 € | 1 | 23.13 € | |||

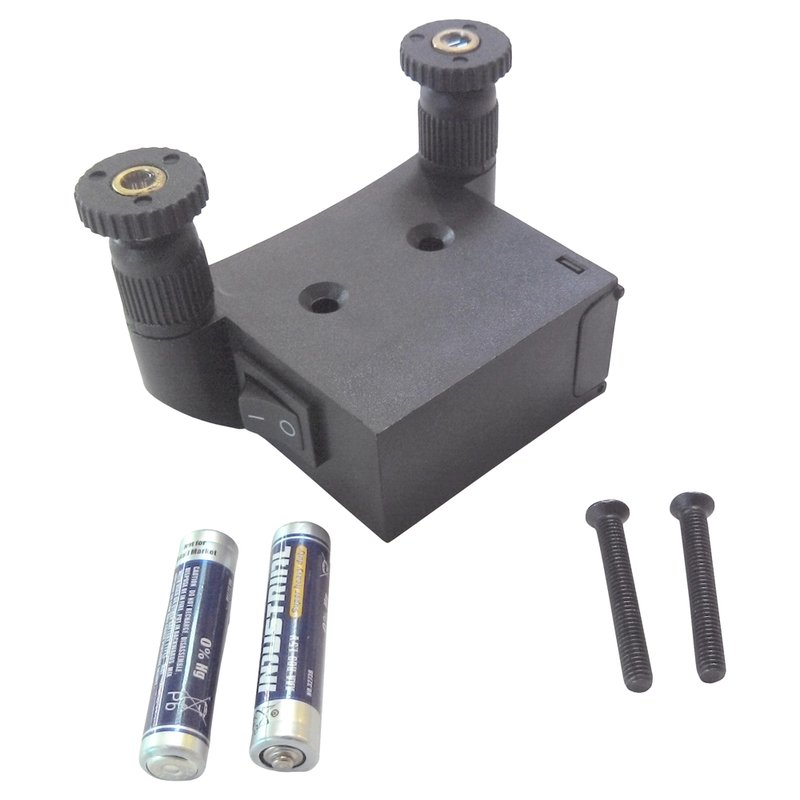

 | Laser block Ref. PPR20597479 59.56 € | 1 | 59.56 € | |||
 | XPLR+ETBSF120 vise + clamp set Ref. PPR20598069 — | 1 | — | |||
| XPLR+CHC drift key Ref. PPR20598073 — | 1 | — | |||

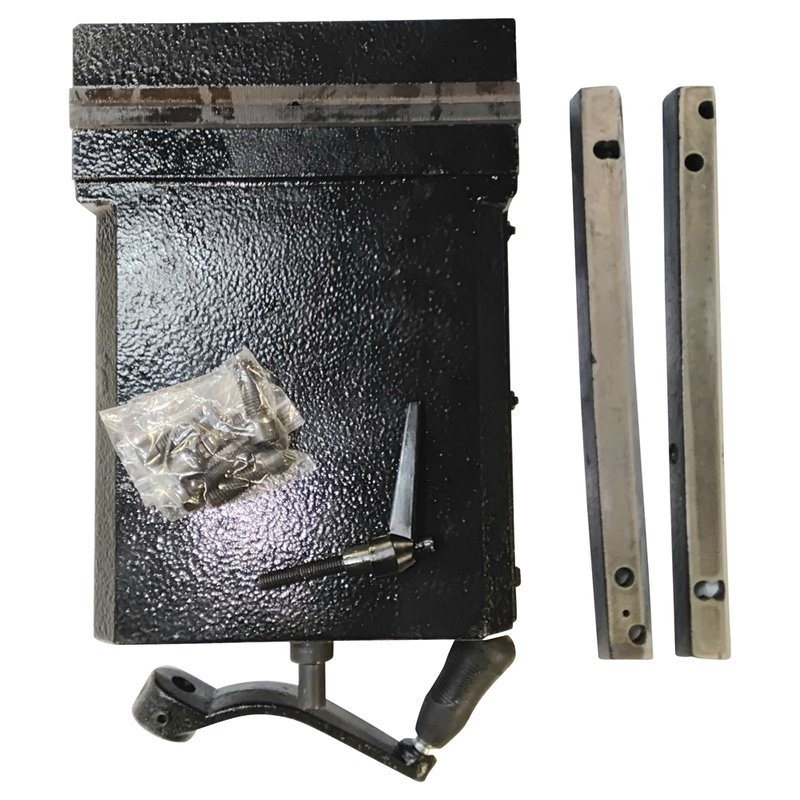

| 1 |  | Base Ref. PPR20593013 59.05 € | 1 | 59.05 € | ||
| 2 | | Column base Ref. PPR20593023 28.04 € | 1 | 28.04 € | ||
| 3 | | Hex head screw Ref. PPR20596502 — | 4 | — | ||

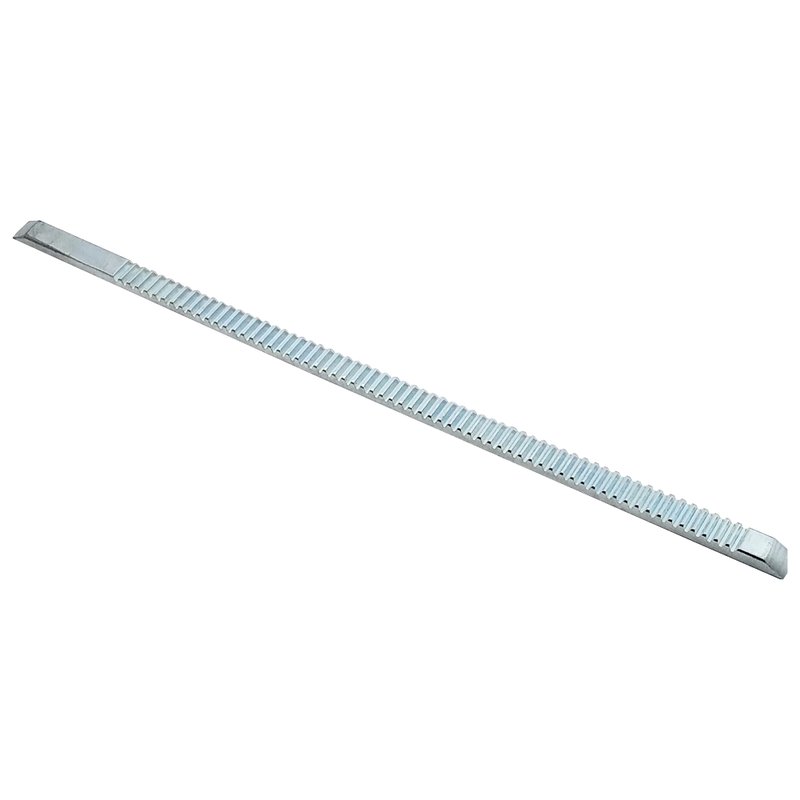

| 4 |  | Rack Ref. PPR20597400 12.93 € | 1 | 12.93 € | ||
| 5 | | Column Ref. PPR20596503 — | 1 | — | ||

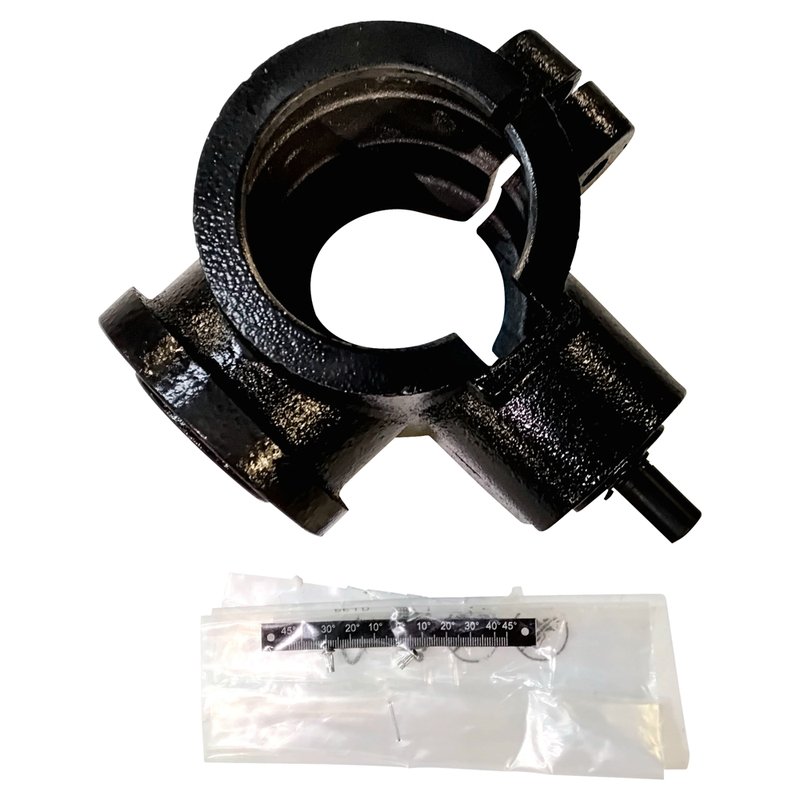

| 00 |  | Table support collar Ref. PPR20593005 50.41 € | 1 | 50.41 € | ||

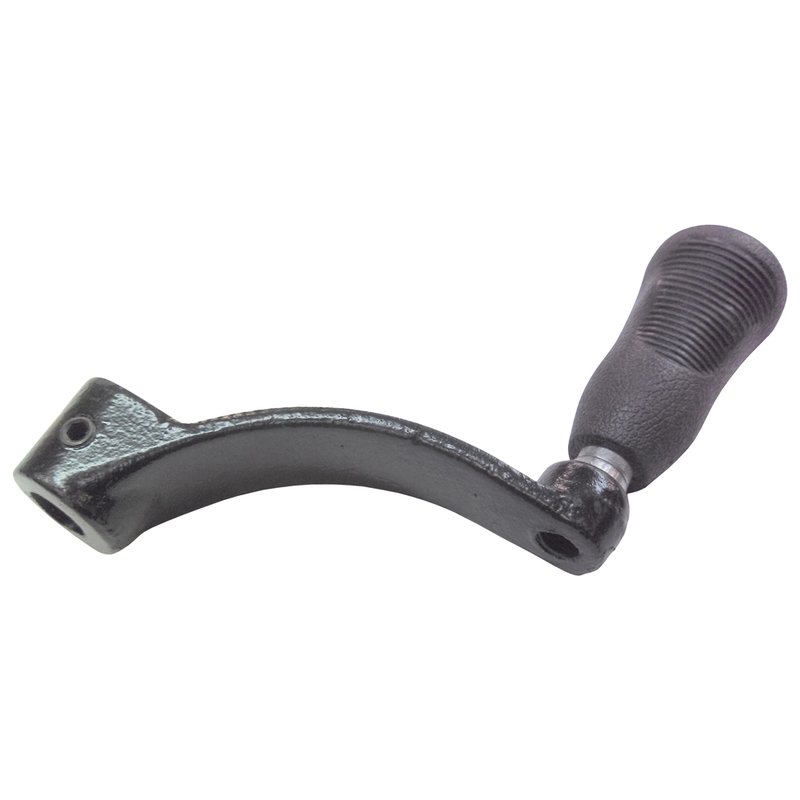

| 00 |  | Table feed crank Ref. PPR20597407 16.66 € | 1 | 16.66 € | ||

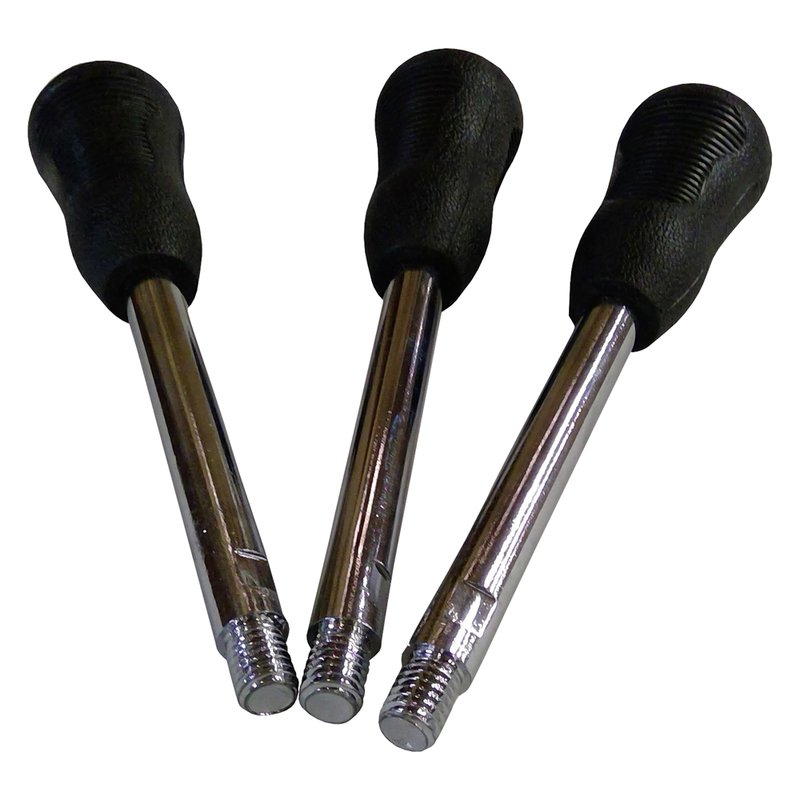

| 01 |  | Set of 3 capstan arms Ref. PPR20597409 25.05 € | 1 | 25.05 € | ||
| 16 | | Socket set screw Ref. PPR20596506 — | 1 | — | ||
| 17 | | Circlip Ref. PPR20596507 — | 1 | — | ||
| 18 |  | Pinion shaft Ref. PPR20597412 6.51 € | 1 | 6.51 € | ||
| 19 | | Pinion Ref. PPR20596508 — | 1 | — | ||
| 20 |  | Worm screw Ref. PPR20597416 6.59 € | 1 | 6.59 € | ||

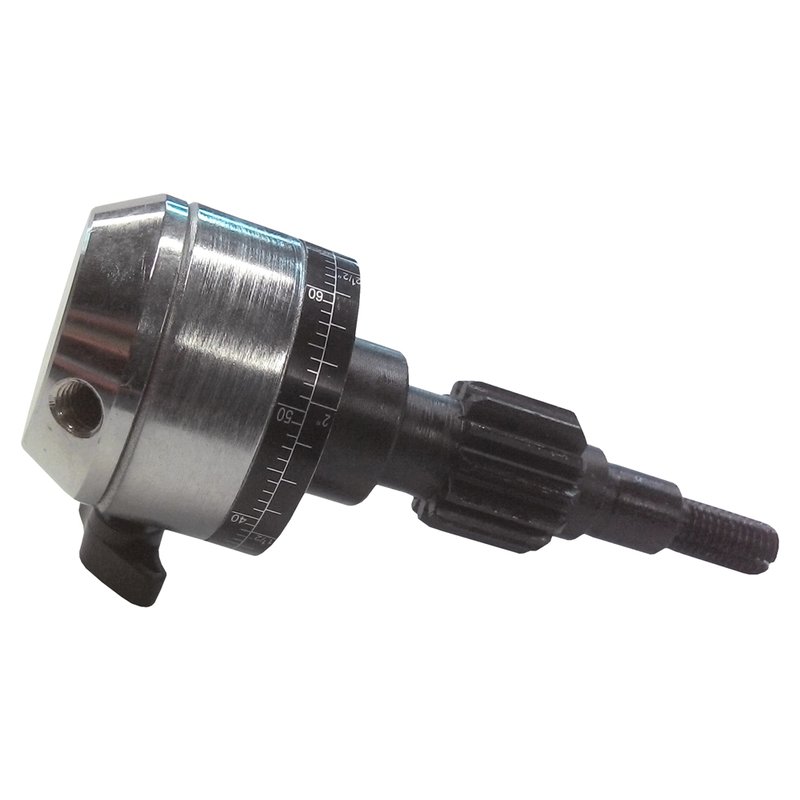

| 02 |  | Pinion shaft Ref. PPR20597418 38.83 € | 1 | 38.83 € | ||
| 21 | | Clamping knob Ref. PPR20596509 — | 1 | — | ||
| 22 | | Spring pin Ref. PPR20596510 — | 1 | — | ||
| 23 | | Capstan Ref. PPR20596511 — | 1 | — | ||
| 24 | | Capstan hub Ref. PPR20596513 — | 1 | — | ||
| 25 | | Rivet Ref. PPR20596515 — | 1 | — | ||
| 26 | | Depth scale Ref. PPR20596516 — | 1 | — | ||
| 27 | | Capstan shaft Ref. PPR20596518 — | 1 | — | ||
| 02 | | Rack ring Ref. PPR20593007 5.43 € | 1 | 5.43 € | ||
| 28 | | Socket set screw Ref. PPR20596520 — | 1 | — | ||
| 31 | | Socket set screw Ref. PPR20596521 — | 2 | — | ||
| 32 | | Motor support Ref. PPR20596524 — | 1 | — | ||
| 36 | | Socket head cap screw Ref. PPR20596525 — | 4 | — | ||
| 37 | | Flat washer Ref. PPR20596526 — | 4 | — | ||

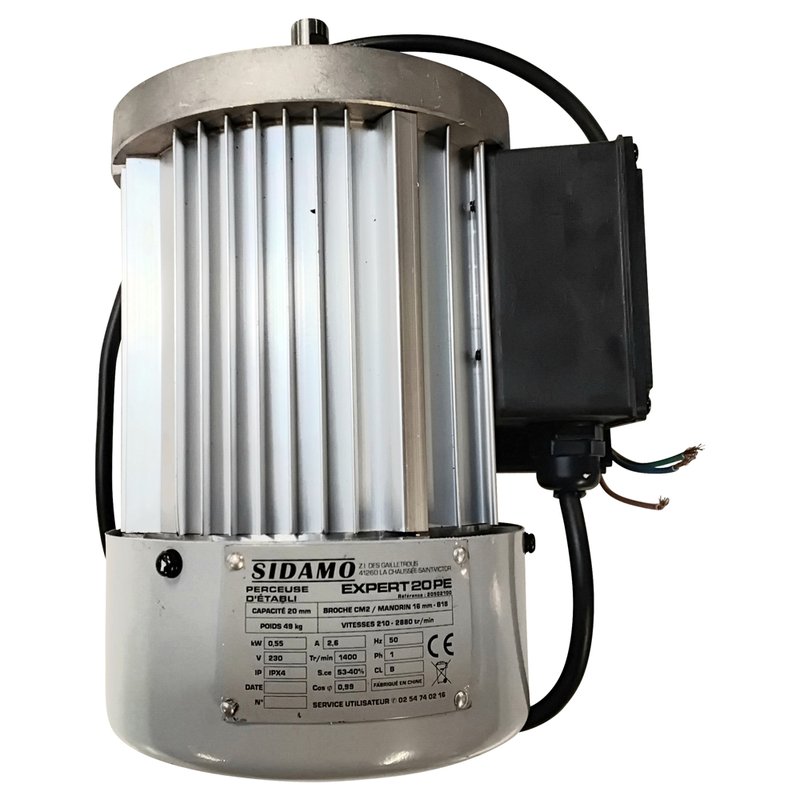

| 42 |  | Motor 230V single-phase 450W Ref. PPR20597423 246.22 € | 1 | 246.22 € | ||

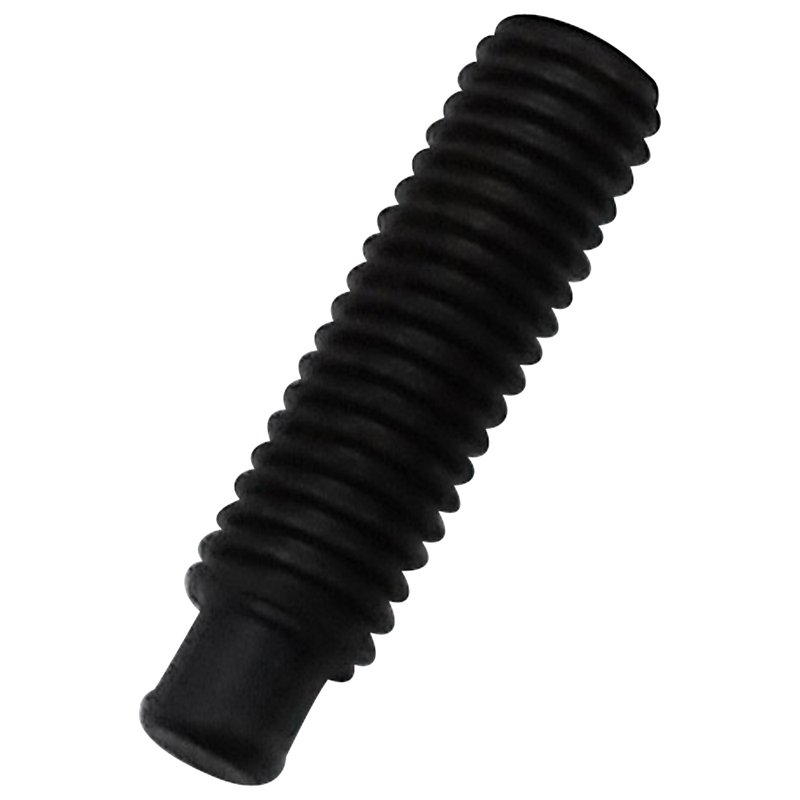

| 43 |  | Socket set screw Ref. PPR20596529 2.10 € | 3 | 2.10 € | ||
| 04 | | Motor tensioning system shaft Ref. PPR20597428 6.34 € | 1 | 6.34 € | ||
| 48 | | Flat washer Ref. PPR20596530 — | 3 | — | ||
| 49 | | Hex nut Ref. PPR20596531 — | 3 | — | ||

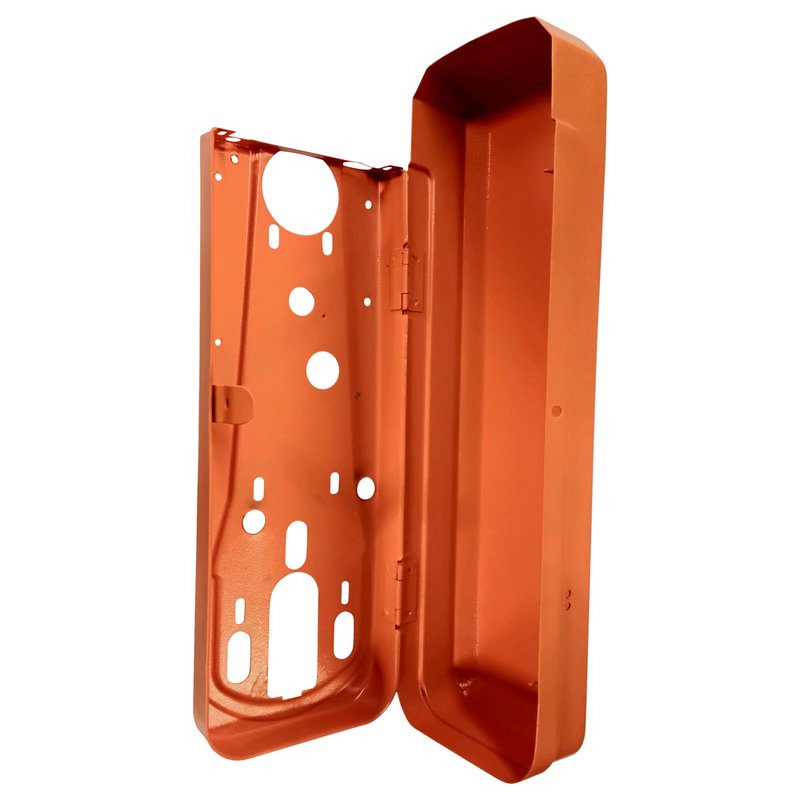

| 52 |  | Pulley cover Ref. PPR20593009 32.32 € | 1 | 32.32 € | ||
| 53 | | Flat washer Ref. PPR20596533 — | 2 | — | ||
| 54 | | Cross head screw Ref. PPR20596534 — | 2 | — | ||

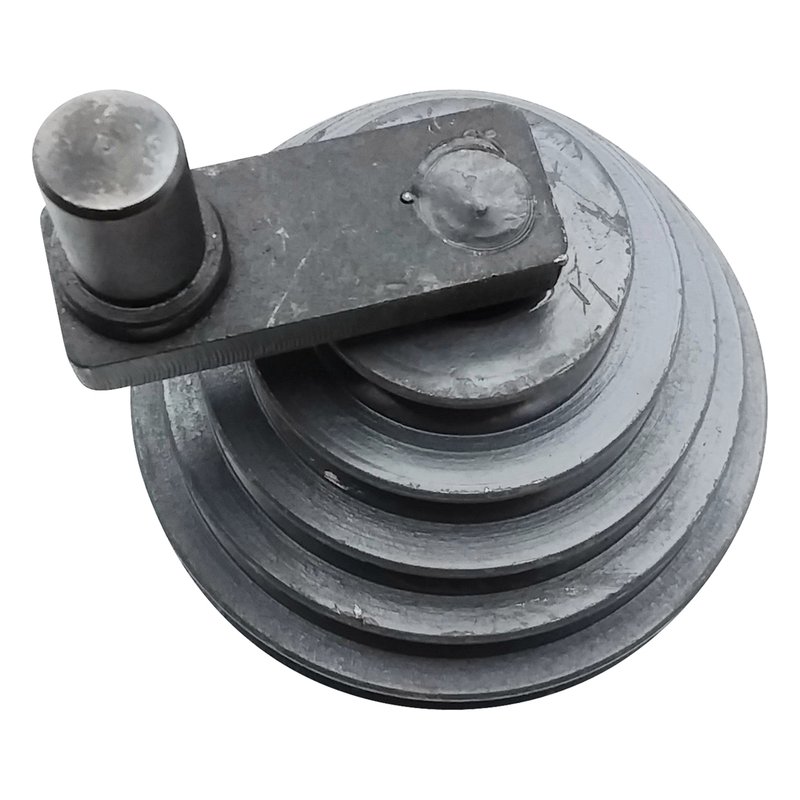

| 05 |  | Central pulley Ref. PPR20597434 26.47 € | 1 | 26.47 € | ||

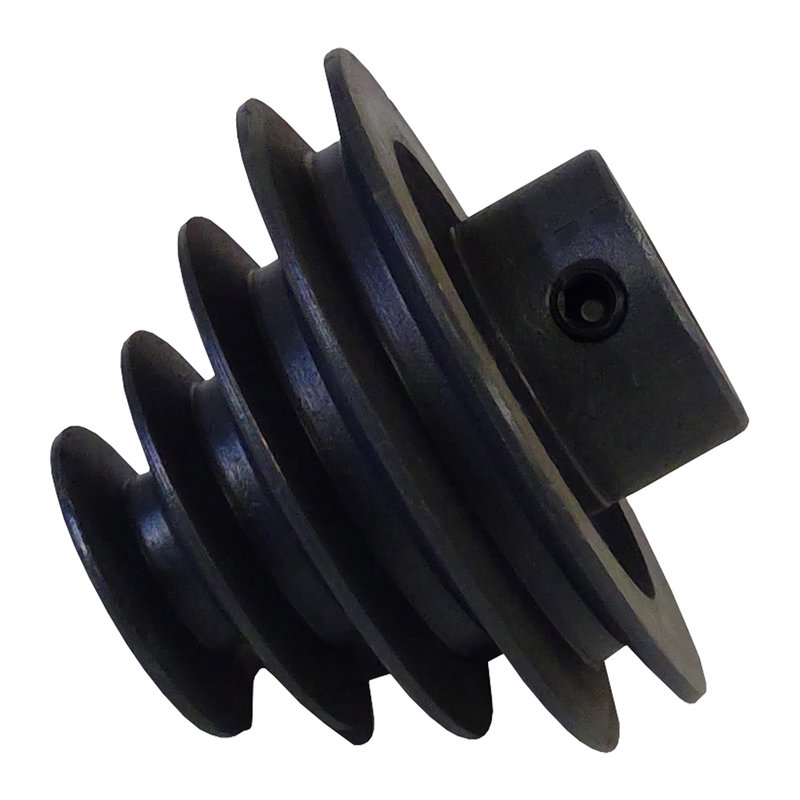

| 05 |  | Motor pulley Ref. PPR20597437 21.09 € | 1 | 21.09 € | ||

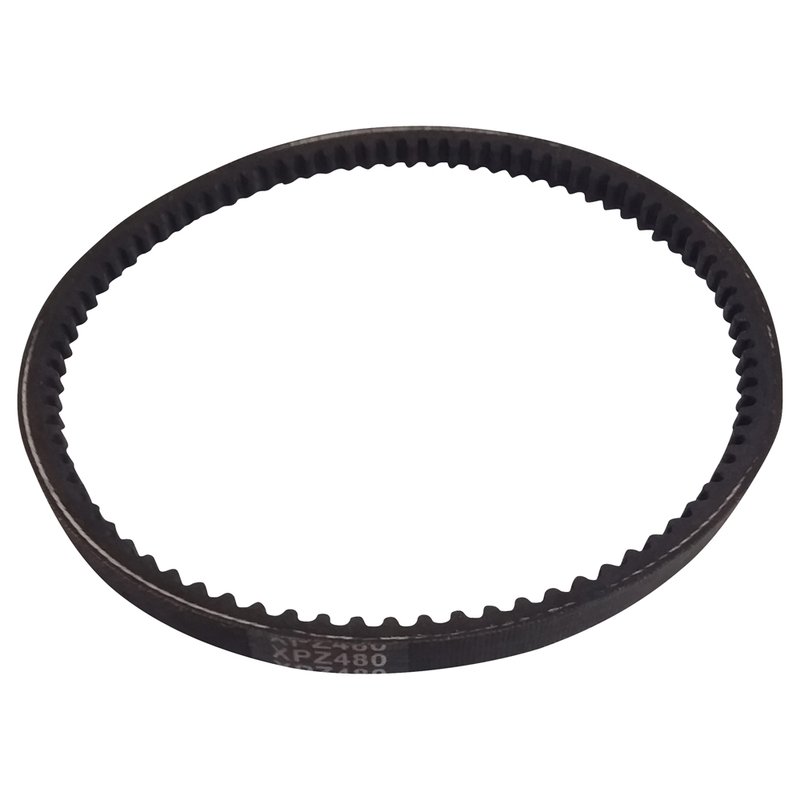

| 59 |  | Belt motor side XPZ480 Ref. PPR20597440 21.41 € | 1 | 21.41 € | ||

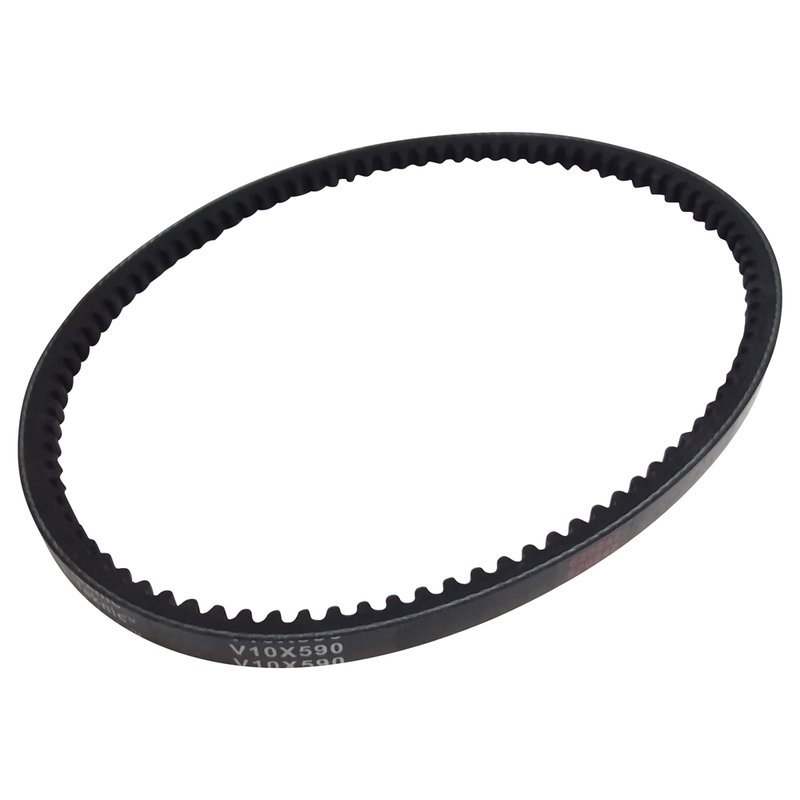

| 60 |  | Belt spindle side V10X590 Ref. PPR20597443 21.45 € | 1 | 21.45 € | ||

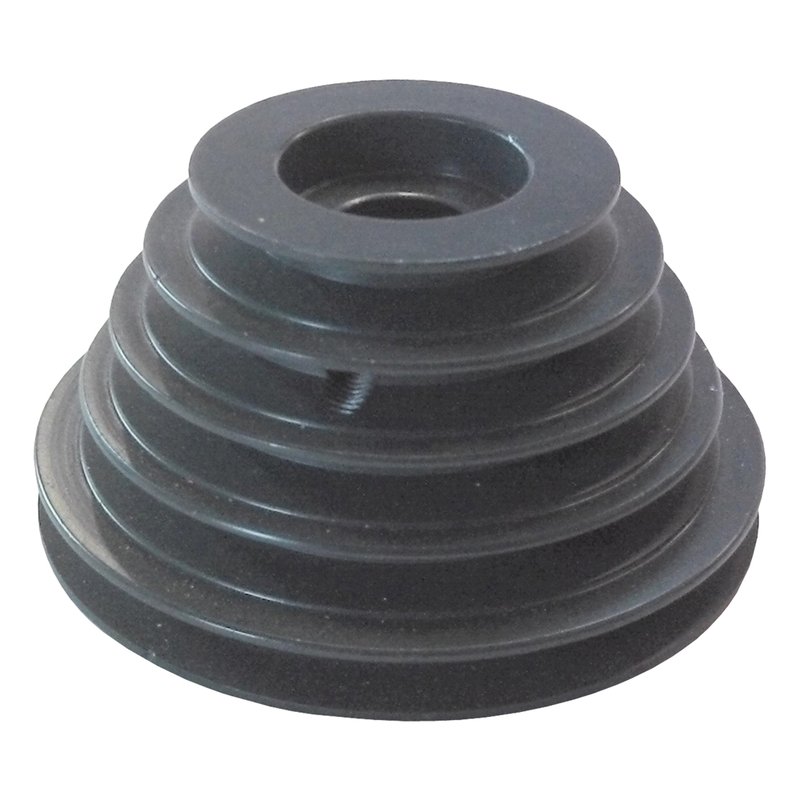

| 64 |  | Spindle-side pulley Ref. PPR20597446 29.32 € | 1 | 29.32 € | ||

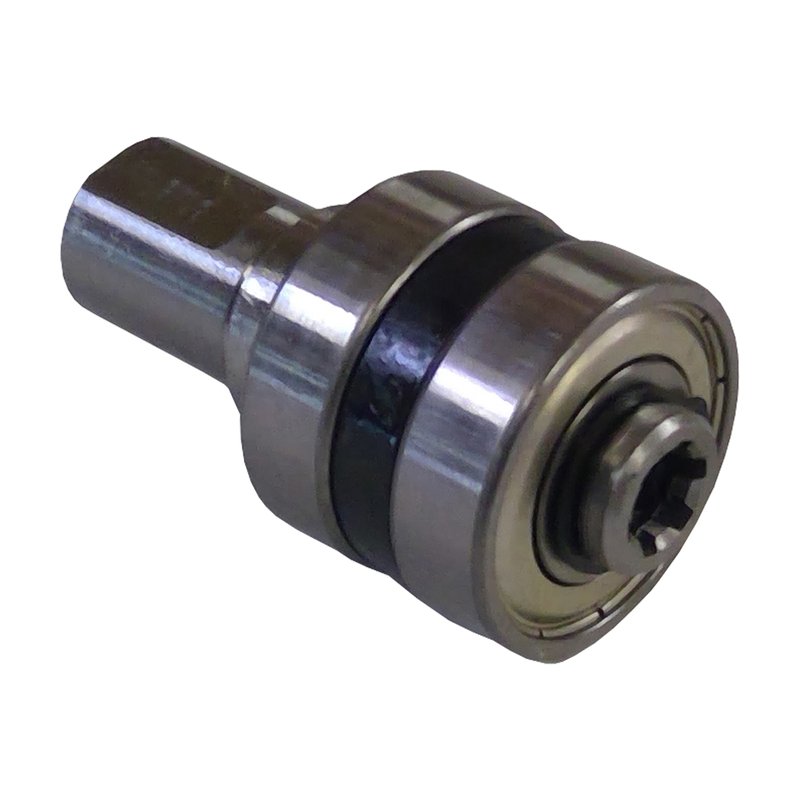

| 65 |  | Spindle-side pulley support Ref. PPR20597449 24.44 € | 1 | 24.44 € | ||
| 06 |  | Pulley cover closing system Ref. PPR20597452 2.12 € | 1 | 2.12 € | ||

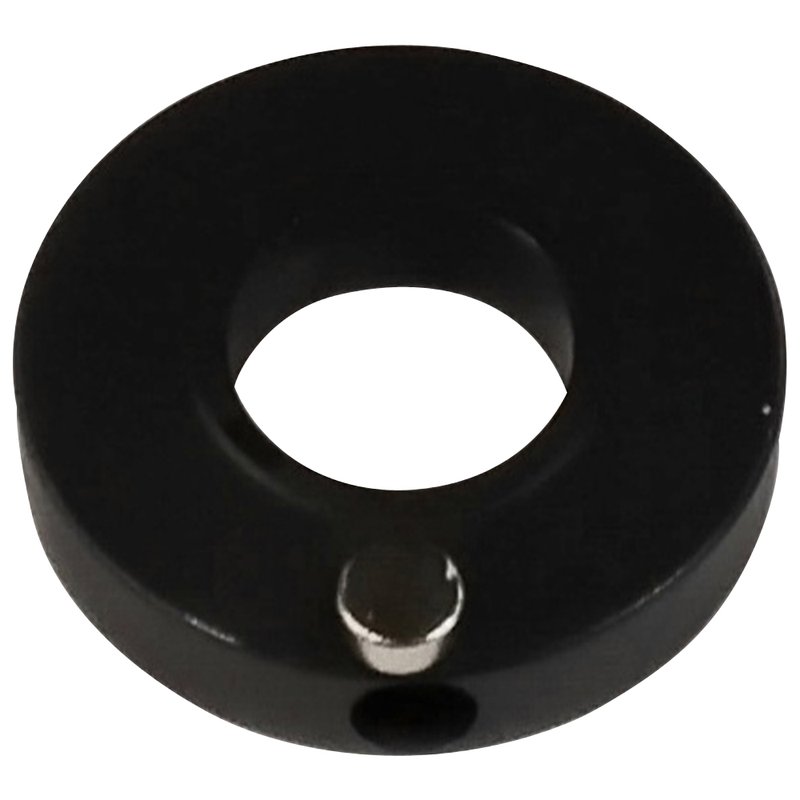

| 06 |  | Magnet support Ref. PPR20597593 11.35 € | 1 | 11.35 € | ||
| 72 | | Cross head screw Ref. PPR20596595 — | 4 | — | ||
| 73 | | Flat washer Ref. PPR20596596 — | 4 | — | ||
| 74 | | Rubber bushing Ref. PPR20596601 — | 1 | — | ||
| 75 | | Flat washer Ref. PPR20596597 — | 2 | — | ||
| 76 | | Hex nut Ref. PPR20596598 — | 2 | — | ||
| 77 | | Spring washer Ref. PPR20596599 — | 2 | — | ||
| 78 | | Hose clamp Ref. PPR20596600 — | 2 | — | ||
| 79 | | Flat washer Ref. PPR20596603 — | 2 | — | ||
| 80 | | Cross head screw Ref. PPR20596604 — | 2 | — | ||
| 81 | | Rubber washer Ref. PPR20596606 — | 6 | — | ||
| 82 |  | Sensor Ref. PPR20597592 28.32 € | 1 | 28.32 € | ||
| 09 |  | Lamp Ref. PPR20597453 31.54 € | 1 | 31.54 € | ||

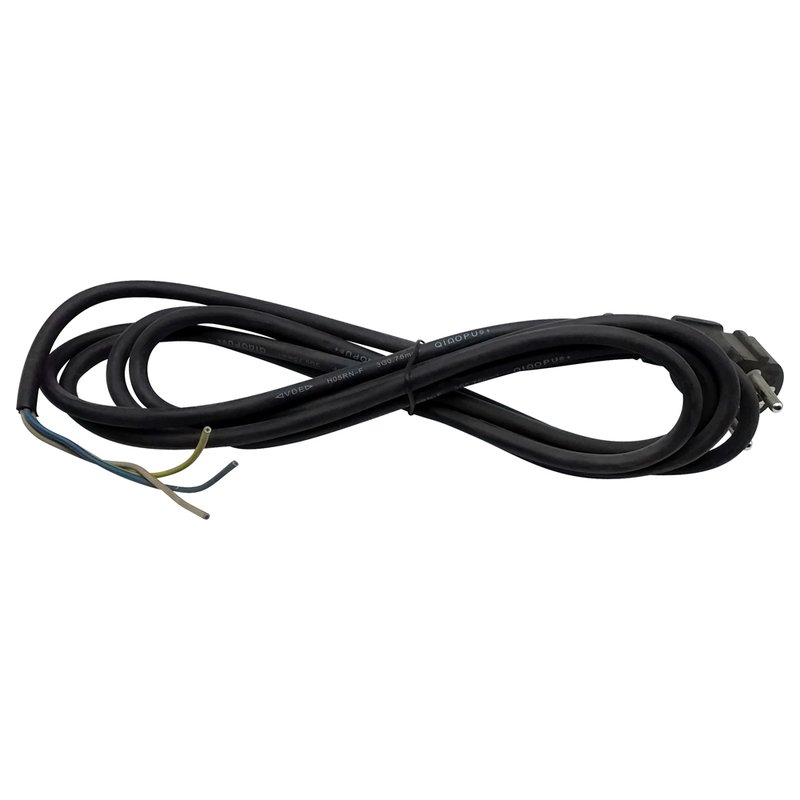

| 92 |  | Single-phase power cable Ref. PPR20597454 22.04 € | 1 | 22.04 € | ||

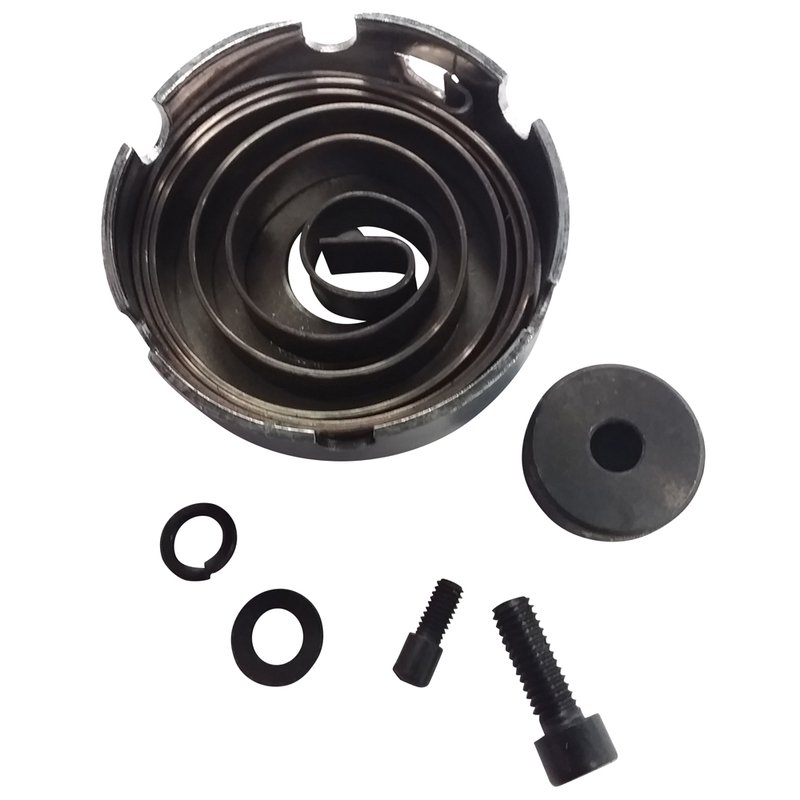

| 09 |  | Spindle return spring Ref. PPR20597456 8.80 € | 1 | 8.80 € | ||
| 93 | | Cross head screw Ref. PPR20596632 — | 1 | — | ||
| 94 | | Round nut Ref. PPR20596635 — | 1 | — | ||
| 95 | | Return spring housing Ref. PPR20596633 — | 1 | — | ||
| 96 | | Cross head screw Ref. PPR20596634 — | 1 | — | ||
| 98 | | Self-tapping screw Ref. PPR20596639 — | 4 | — | ||
| 99 | | Self-tapping screw Ref. PPR20596636 — | 2 | — | ||
| 10 | | Hex nut Ref. PPR20596602 — | 2 | — | ||
| 10 | | Rear plate Ref. PPR20596638 — | 1 | — | ||
| 10 | | Self-tapping screw Ref. PPR20596637 — | 2 | — | ||
| 10 | | Hex nut Ref. PPR20596660 — | 1 | — | ||
| 10 | | Socket set screw Ref. PPR20596659 — | 1 | — | ||

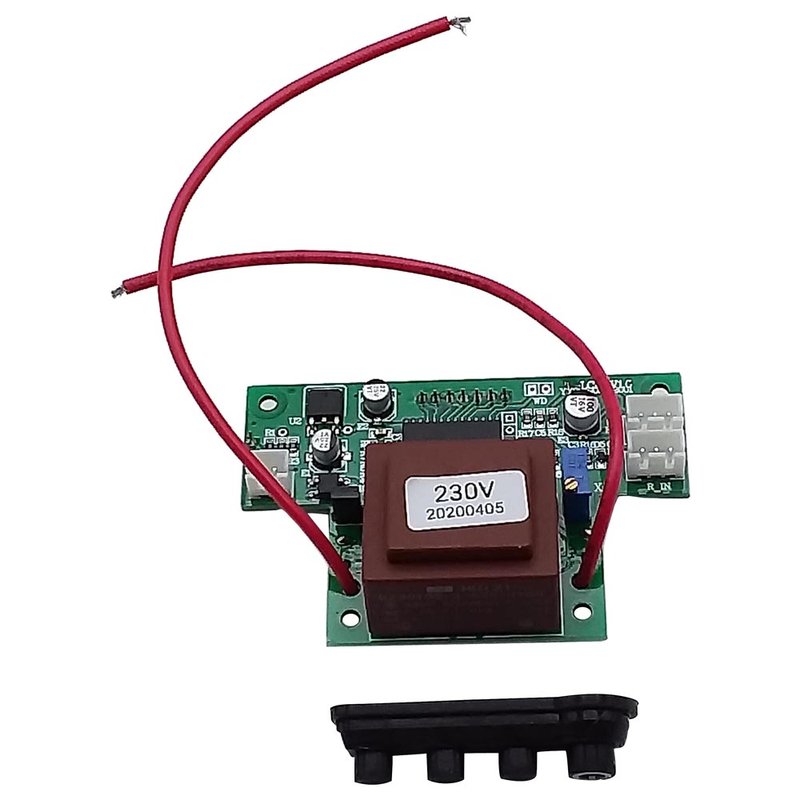

| 10 |  | Single-phase electronic board Ref. PPR20597458 61.25 € | 1 | 61.25 € | ||
| 10 | | Rubber button Ref. PPR20596640 — | 1 | — | ||

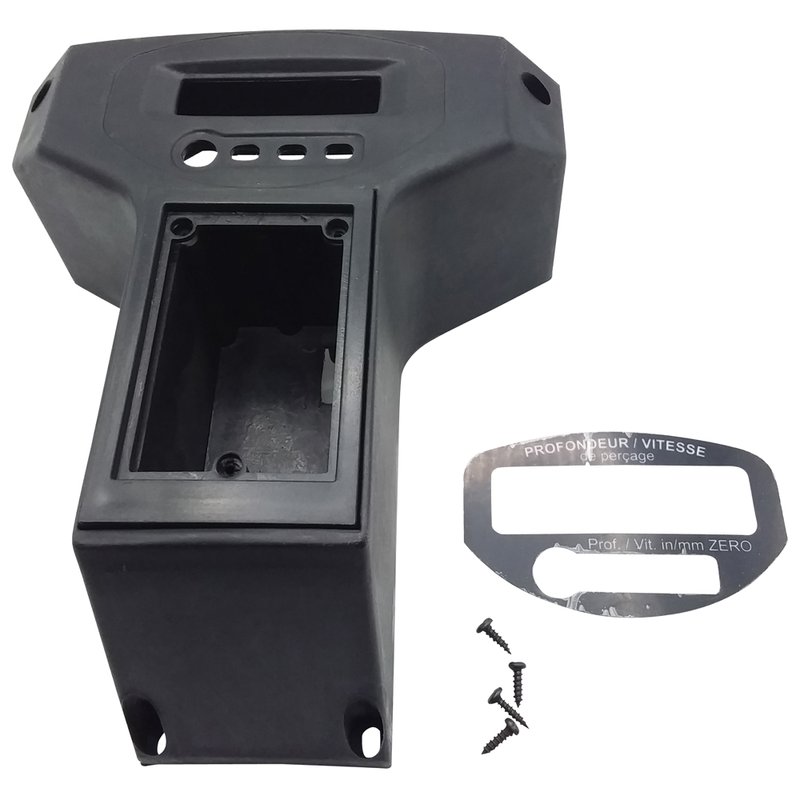

| 10 |  | Complete panel Ref. PPR20597460 15.53 € | 1 | 15.53 € | ||
| 10 | | Cross head screw Ref. PPR20596645 — | 2 | — | ||
| 10 | | Digital display sticker Ref. PPR20596647 — | 1 | — | ||
| 11 |  | Lighting switch Ref. PPR20597463 2.11 € | 1 | 2.11 € | ||

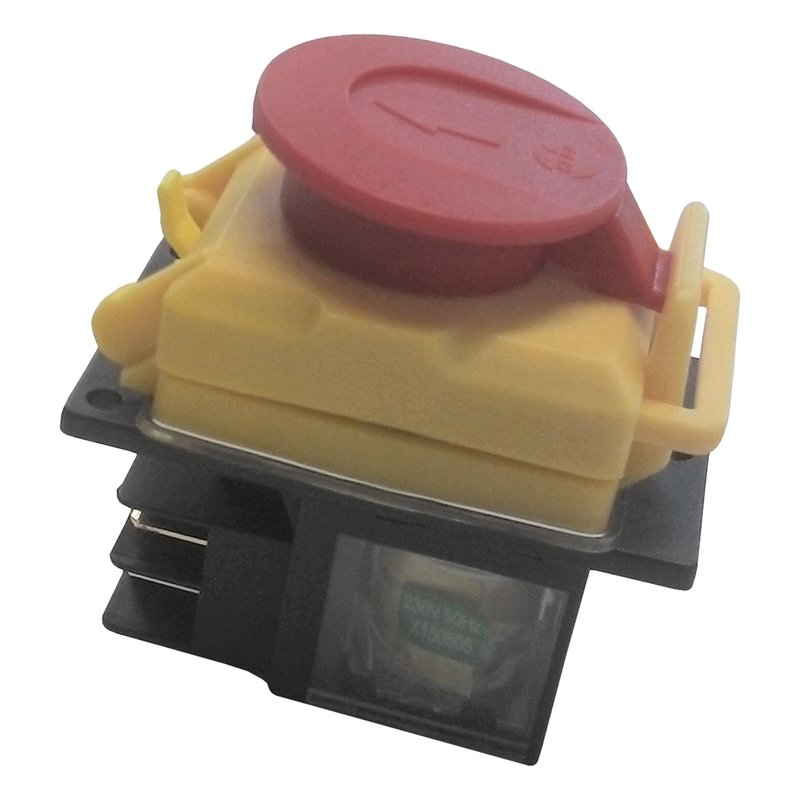

| 11 |  | Single-phase control box Ref. PPR20597464 25.10 € | 1 | 25.10 € | ||
| 11 | | Self-tapping screw Ref. PPR20596650 — | 2 | — | ||
| 11 | | Cross head screw Ref. PPR20596651 — | 2 | — | ||
| 11 | | Ball bearing Ref. PPR20596652 — | 1 | — | ||
| 11 | | Circlip Ref. PPR20596653 — | 1 | — | ||
| 11 | | Rubber washer Ref. PPR20596654 — | 1 | — | ||
| 11 | | Socket head cap screw Ref. PPR20596655 — | 2 | — | ||
| 12 | | Socket set screw Ref. PPR20596656 — | 1 | — | ||
| 12 | | Socket set screw Ref. PPR20596657 — | 4 | — | ||
| 12 | | Knob support block Ref. PPR20596658 — | 1 | — | ||
| 12 |  | Pinion Ref. PPR20597466 4.10 € | 1 | 4.10 € | ||
| 12 | | Cross head screw Ref. PPR20596661 — | 2 | — | ||
| 12 | | Knob shaft support Ref. PPR20596662 — | 1 | — | ||
| 12 | | Rivet Ref. PPR20596663 — | 1 | — | ||
| 12 | | Pointer Ref. PPR20596665 2.13 € | 1 | 2.13 € | ||

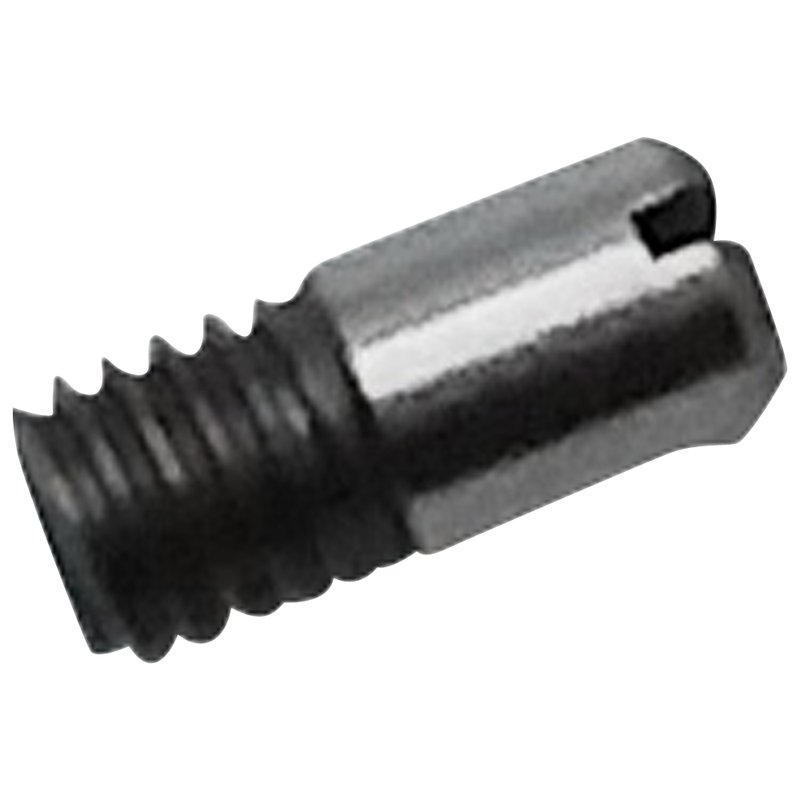

| 13 |  | Socket set screw Ref. PPR20596664 2.10 € | 1 | 2.10 € | ||
| 13 |  | Probe Ref. PPR20597467 22.04 € | 1 | 22.04 € | ||
| 13 | | Table Ref. PPR20593024 131.13 € | 1 | 131.13 € | ||
| 13 | | Rivet Ref. PPR20596666 — | 2 | — | ||
| 13 | | Angle scale Ref. PPR20596667 — | 1 | — | ||
| 13 | | Rivet Ref. PPR20596668 — | 2 | — | ||

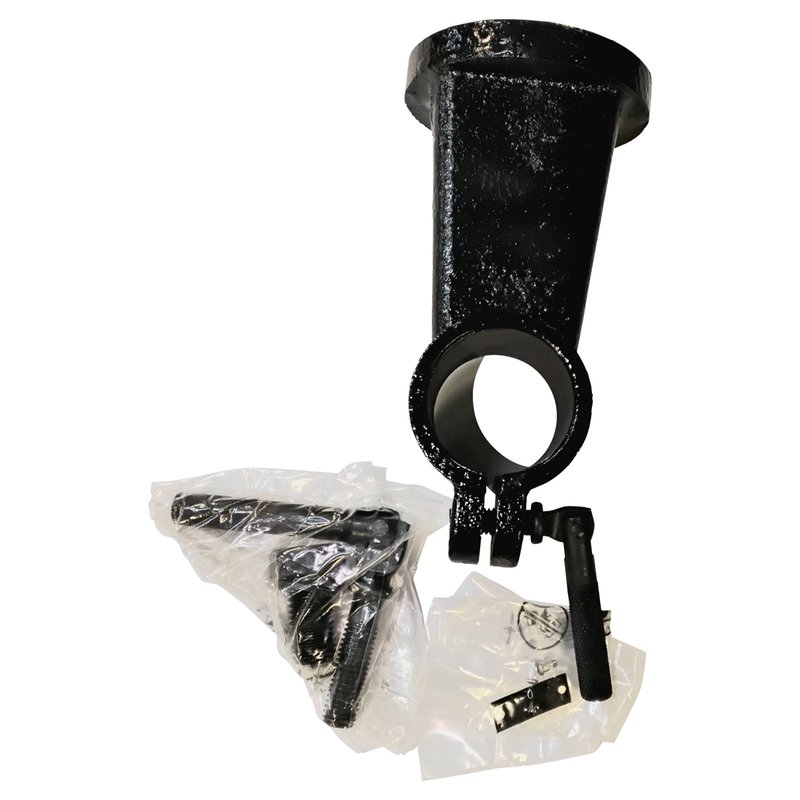

| 13 |  | Table support Ref. PPR20593011 131.03 € | 1 | 131.03 € | ||
| 13 | | Pointer Ref. PPR20596669 — | 1 | — | ||
| 13 | | Table locking handle Ref. PPR20596670 — | 1 | — | ||
| 13 | | Spring washer Ref. PPR20596671 — | 1 | — | ||
| 13 | | Hex head screw Ref. PPR20596672 — | 1 | — | ||
| 14 | | Collar locking handle Ref. PPR20596673 — | 1 | — | ||

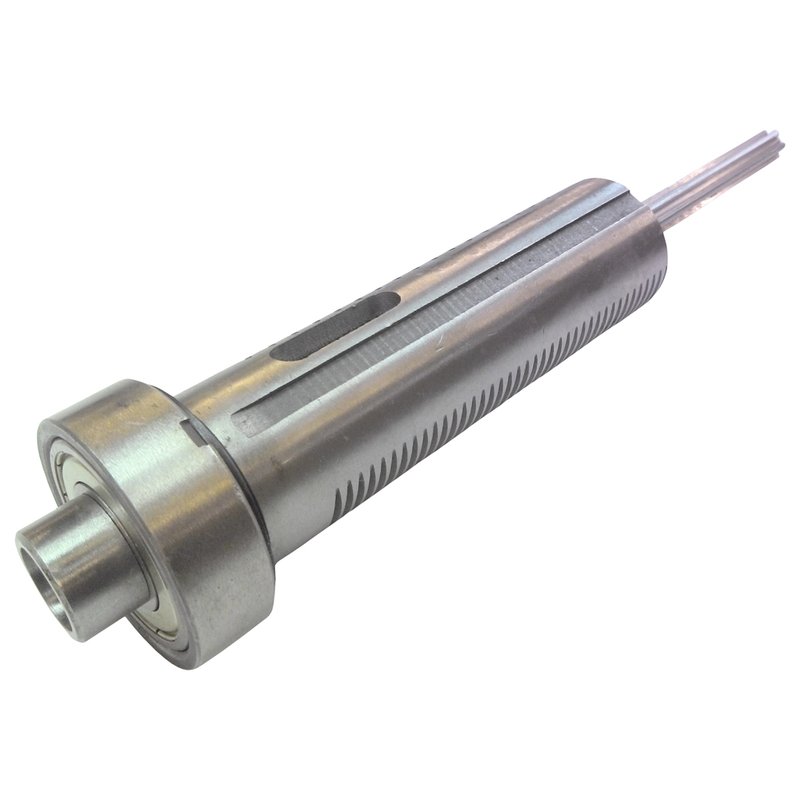

| 14 |  | Drill spindle Ref. PPR20597471 44.72 € | 1 | 44.72 € | ||
| 14 | | Ball bearing Ref. PPR20596677 — | 1 | — | ||
| 14 | | Spindle Ref. PPR20596678 — | 1 | — | ||
| 14 | | XPLR+QM chuck arbor CM2 - B18 Ref. PPR20598070 — | 1 | — | ||
| 14 | | XPLR+MAS keyless chuck Ref. PPR20598072 — | 1 | — | ||

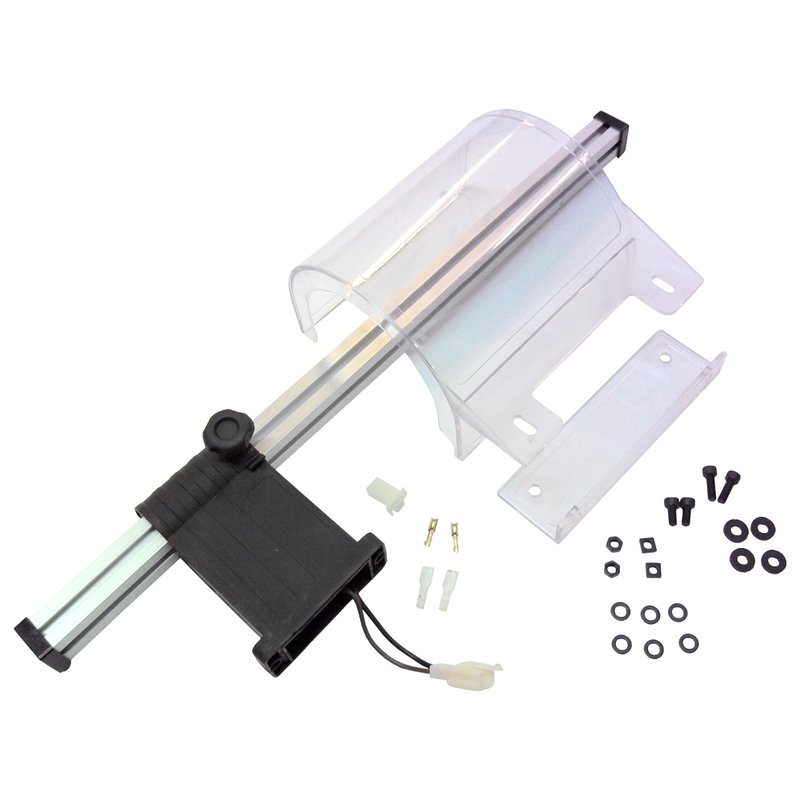

| 14 |  | Chuck guard kit single-phase Ref. PPR20597475 104.65 € | 1 | 104.65 € | ||
| 14 |  | Pulley cover microswitch QKS8(250V 10A / VS10N) Ref. PPR20597477 15.78 € | 1 | 15.78 € | ||
| 15 | | Retaining ring Ref. PPR20597596 4.13 € | 1 | 4.13 € | ||
| 15 | | Cross head screw Ref. PPR20596605 — | 3 | — | ||
| 15 | | Flat washer Ref. PPR20596607 — | 3 | — | ||
| 15 | | Socket set screw Ref. PPR20596608 — | 1 | — |
