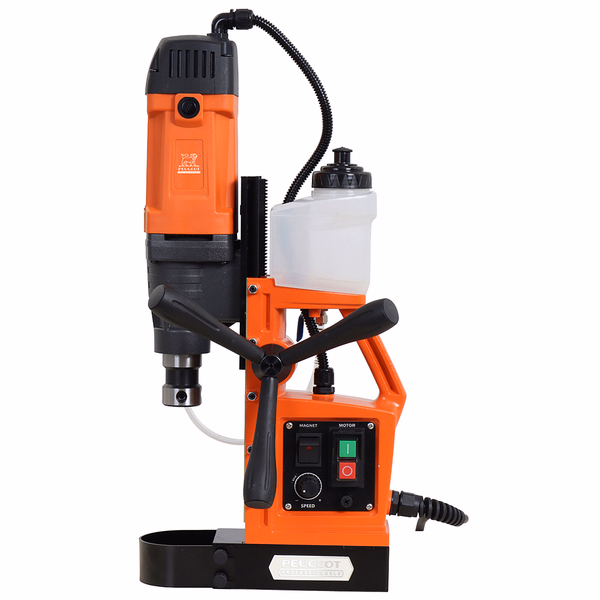

Magnetic base drill 1.55 kW max 35 mm 230V - PPBM35V
REFERENCE : PPM01100001
EAN : 3221912718587
749 € VAT exc.*Recommended indicative user price
To request a quote, please log in
Powerful, compact, and lightweight magnetic drill, designed for drilling or coring steel up to 35 mm, motor with soft start and constant torque, spindle with 19 mm Weldon mount, integrated cutting fluid reservoir
Geometries
Ease of use
- Compact and portable design
- Electronic speed control
- Spindle with 19 mm Weldon mount
- Spirit level for easy alignment
Robustness
- Base with strong magnetic attraction of 14,800 N
- Machine designed for drilling or coring steel
Safety
- Motor with soft start and constant torque
- Metal protective screen
- Supplied with an anti-fall strap
Benefits
- Integrated cutting fluid reservoir
- Lubrication through the center of the tool
Technical data
35 mm / 10 Ø machining
120 mm spindle stroke
14,800 N magnetic force
Base dimensions (L x W x H) (mm): 166 x 80 x 50
Speed under load (rpm): 100 ~870
Motor power (W): 1,550
230 V single-phase
Weight: 10.8 kg
120 mm spindle stroke
14,800 N magnetic force
Base dimensions (L x W x H) (mm): 166 x 80 x 50
Speed under load (rpm): 100 ~870
Motor power (W): 1,550
230 V single-phase
Weight: 10.8 kg
1550 W - 230 V single-phase machine, heavy-duty, for core drilling and drilling, 19 mm Weldon with lubrication.
Supplied in a carrying case with: drill chuck adapter, 13 mm keyed chuck (key included) for drill bits, safety strap, two service keys, two 1A fuses.
Ease of use
- Compact and portable design
- Electronic speed control
- Spindle with 19 mm Weldon mount
- Spirit level for easy alignment
Robustness
- Base with strong magnetic attraction of 14,800 N
- Machine designed for drilling or coring steel
Safety
- Motor with soft start and constant torque
- Metal protective screen
- Supplied with an anti-fall strap
Benefits
- Integrated cutting fluid reservoir
- Lubrication through the center of the tool
Technical data
35 mm / 10 Ø machining
120 mm spindle stroke
14,800 N magnetic force
Base dimensions (L x W x H) (mm): 166 x 80 x 50
Speed under load (rpm): 100 ~870
Motor power (W): 1,550
230 V single-phase
Weight: 10.8 kg
120 mm spindle stroke
14,800 N magnetic force
Base dimensions (L x W x H) (mm): 166 x 80 x 50
Speed under load (rpm): 100 ~870
Motor power (W): 1,550
230 V single-phase
Weight: 10.8 kg
1550 W - 230 V single-phase machine, heavy-duty, for core drilling and drilling, 19 mm Weldon with lubrication.
Supplied in a carrying case with: drill chuck adapter, 13 mm keyed chuck (key included) for drill bits, safety strap, two service keys, two 1A fuses.
